Panduit DNG14-188FB-3K | Disconnects on a Reel | UPC - 07498368743

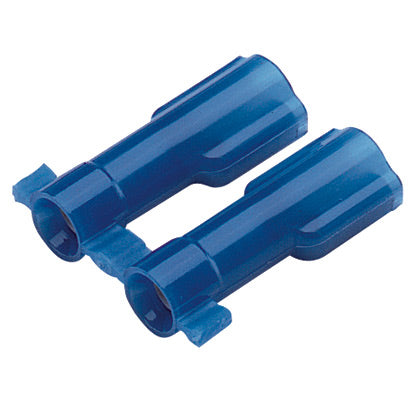

The Supra-Grip female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.187 x 0.020 (4.9 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in reels of 3000 pieces.

---

Panduit Panduit DNG14-188FB-3K | Disconnects on a Reel | UPC - 07498368743 Key Specs

Disconnect Type	Female Disconnect-Right Angle
Insulation Material	Nylon-Fully Insulated
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG)	#16
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.19
Tab Size (mm)	4.8
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212 ,C22.2 No.153, UL Recognized
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Blue
Flammability Rating	HB
Insulation Diameter (In.)	0.15
Insulation Diameter (mm)	3.9
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
