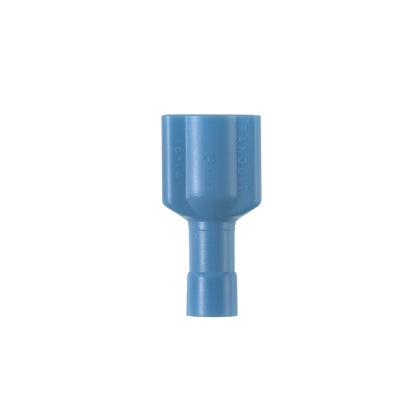

Panduit DPF14-250FIMB-Q | Loose Piece Disconnect | UPC - 07498312041

The vibration resistant DiscoGrip male disconnect is made of brass and is nickel-plated. It is fully insulated in blue premium nylon oversized housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.92" (23.4 mm) long and 0.46" (11.7 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 25.

---

Panduit Panduit DPF14-250FIMB-Q | Loose Piece Disconnect | UPC - 07498312041 Key Specs

Note	DPF14-250FIMB-Q replaces DPF14-250FIMB-L
Disconnect Type	Male Tab Disconnect
Insulation Material	Premium Nylon - Fully Insulated
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG)	#16
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.25
Tab Size (mm)	6.3
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Nickel
Color Code	Blue
Flammability Rating	V2
Insulation Diameter (In.)	0.16
Insulation Diameter (mm)	4.1
Maximum Operating Temperature (°C)	105
