Brand: Panduit
|
SKU:
DV14-250BM-RAW
Panduit DV14-250B-M | Loose Piece Disconnect | UPC - 07498382551
Regular price
$262.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

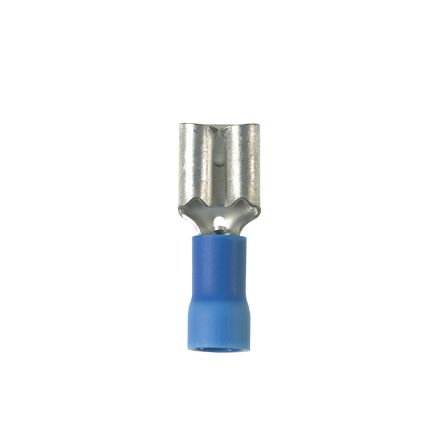

Panduit DV14-250B-M | Loose Piece Disconnect | UPC - 07498382551
Regular price
$262.53
Unit price
Brand: Panduit
|
SKU:
DV14-250BM-RAW
Regular price
$262.53
Unit price
Shipping calculated at checkout.
Description
Description

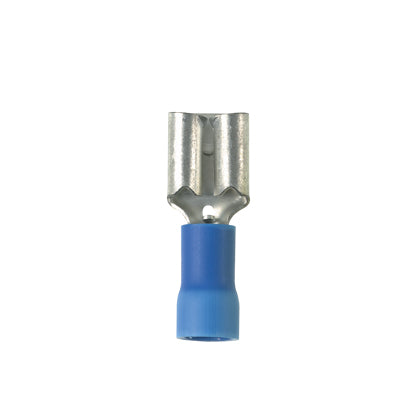

Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DV-B, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.81 in L x 0.29 in W x 0.12 in H, Insulated
Features + Benefits
- Right angle design for use in limited space applications
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit DV14-250B-M | Loose Piece Disconnect | UPC - 07498382551 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.3 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 2.5 |
Panduit DV14-250B-M | Loose Piece Disconnect | UPC - 07498382551 Data Sheets
| Part Drawings | Part Drawing - PDF - A4130709 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Videos | BlackFin CT-2300 Video 16:9 BSN18-C | Download and View |
Panduit DV14-250B-M | Loose Piece Disconnect | UPC - 07498382551 Environmental Information
| Panduit's RoHS Statement | Download and View |
