Brand: Panduit
|
SKU:
DV18-250B-CY

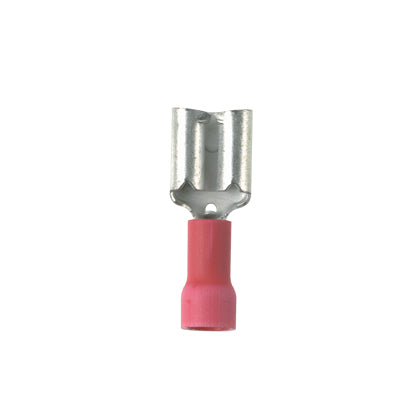

Panduit DV18-250B-CY | Loose Piece Disconnect | UPC - 07498368561
Regular price
$95.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

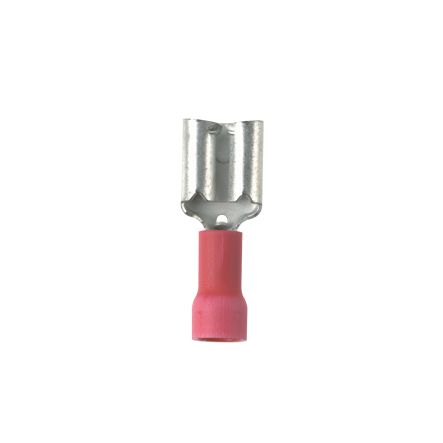

Panduit DV18-250B-CY | Loose Piece Disconnect | UPC - 07498368561
Regular price
$95.29
Unit price
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DV-B, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.15 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.81 in L x 0.29 in W x 0.12 in H, Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DV18-250B-CY | Loose Piece Disconnect | UPC - 07498368561 Key Specs
| Note | DV18-250B-CY replaces DV18-250B-C |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Red |
| Flammability Rating | V0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
Panduit DV18-250B-CY | Loose Piece Disconnect | UPC - 07498368561 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DVF18-187-CY Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4130709 | Download and View |
| Selection Guides | Loose Piece Terminals and Ferrules: TMSG08--SA-ENG | Download and View |
Panduit DV18-250B-CY | Loose Piece Disconnect | UPC - 07498368561 Environmental Information
| Panduit's RoHS Statement | Download and View |
