Brand: Panduit
|
SKU:
PAN-DV18-250MB-CY

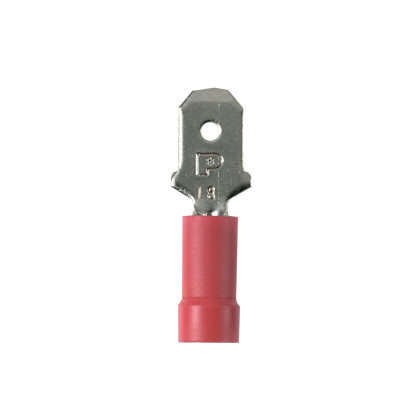

Panduit DV18-250MB-CY | Loose Piece Disconnect | UPC - 07498368562
Regular price
$109.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DV18-250MB-CY | Loose Piece Disconnect | UPC - 07498368562
Regular price
$109.86
Unit price
Brand: Panduit
|
SKU:
PAN-DV18-250MB-CY
Regular price
$109.86
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DV-MB, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, 600 VAC, 9/32 in L Wire Strip, 0.154 in Dia Maximum Vinyl Insulation, 221 deg F, Copper, Red, Nickel Plated, 0.98 in L x 0.25 in W
Features + Benefits
- Vinyl barrel insulated
Panduit DV18-250MB-CY | Loose Piece Disconnect | UPC - 07498368562 Key Specs
| Note | DV18-250MB-CY replaces DV18-250MB-C |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel |
| Color Code | Red |
| Flammability Rating | V0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
Panduit DV18-250MB-CY | Loose Piece Disconnect | UPC - 07498368562 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNF18-250M-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4140505 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit DV18-250MB-CY | Loose Piece Disconnect | UPC - 07498368562 Environmental Information
| Panduit's RoHS Statement | Download and View |
