Brand: Panduit
|
SKU:
10044257

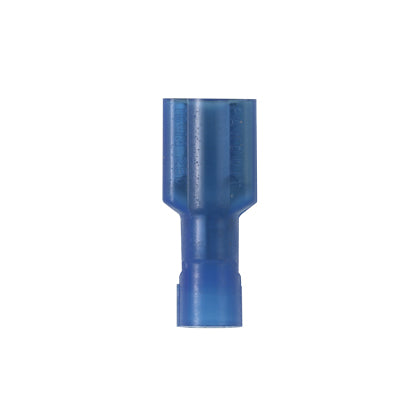

Panduit EDNF14-250FIB-Q | Loose Piece Disconnect | UPC - 61305636624
Regular price
$13.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EDNF14-250FIB-Q | Loose Piece Disconnect | UPC - 61305636624
Regular price
$13.19
Unit price
Description
Description
Panduit StrongHold Female Disconnect, Loose Piece, Series: 250, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.16 in Dia Insulation, 257 deg F, Brass/Nylon, Blue, Tin Plated, 0.84 in L x 0.35 in W x 0.22 in H, Fully Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit EDNF14-250FIB-Q | Loose Piece Disconnect | UPC - 61305636624 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon-Fully Insulated |
| Insulation Type | Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL, CSA |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Sub Brand | StrongHold |
Panduit Panduit EDNF14-250FIB-Q | Loose Piece Disconnect | UPC - 61305636624 Environmental Information
| Panduit's RoHS Statement | Download and View |
