Panduit EDNF18250FIMB-Q | Loose Piece Disconnect | UPC - 61305636665
Regular price
$13.05
Unit price
Description
Description

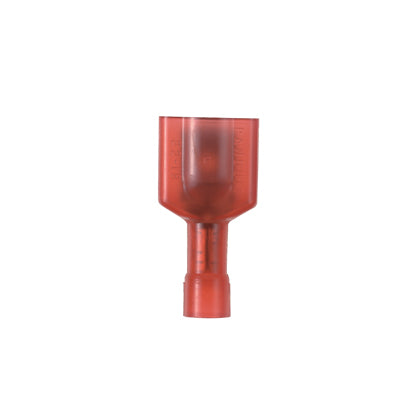

Panduit StrongHold Male Disconnect, Loose Piece, Series: DNF-FIMB, Stranded Copper Conductor, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Funnel Entry Barrel, 600 VAC, 9/32 in L Wire Strip, 0.13 in Dia Insulation, 257 deg F, Brass, Red, TiN Coated, 0.91 in L x 0.45 in W x 0.34 in H
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Nylon barrel insulated
Panduit Panduit EDNF18250FIMB-Q | Loose Piece Disconnect | UPC - 61305636665 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon-Fully Insulated |
| Insulation Type | Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL, CSA |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Flammability Rating | HB |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Sub Brand | StrongHold |
Panduit Panduit EDNF18250FIMB-Q | Loose Piece Disconnect | UPC - 61305636665 Environmental Information
| Panduit's RoHS Statement | Download and View |
