Brand: Panduit
|
SKU:
10044267
Panduit EDV10-250-Q | Loose Piece Disconnect | UPC - 07498327980
Regular price
$13.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EDV10-250-Q | Loose Piece Disconnect | UPC - 07498327980
Regular price
$13.05
Unit price
Description
Description

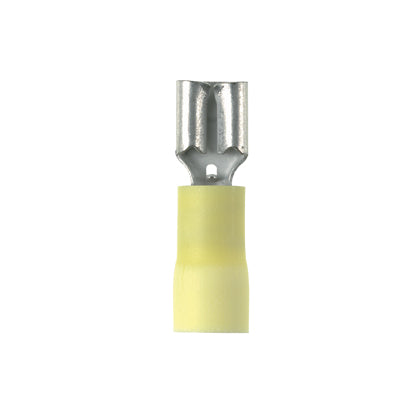

Panduit StrongHold Female Disconnect, Series: 250, Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.23 in Dia Insulation, 194 deg F, Brass/Vinyl, Yellow, Tin Plated, 1.03 in L x 0.3 in W x 0.13 in H, Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit EDV10-250-Q | Loose Piece Disconnect | UPC - 07498327980 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL Recognized, CSA, cULus, E78522, LR31212 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| Maximum Operating Temperature (°C) | 90 |
Panduit Panduit EDV10-250-Q | Loose Piece Disconnect | UPC - 07498327980 Environmental Information
| Panduit's RoHS Statement | Download and View |
