HellermannTyton 117-00012 | Stand Off Dual Clamp Tie, 20.10" L...
Description
Description

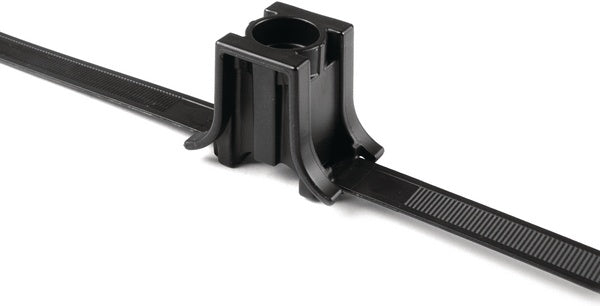

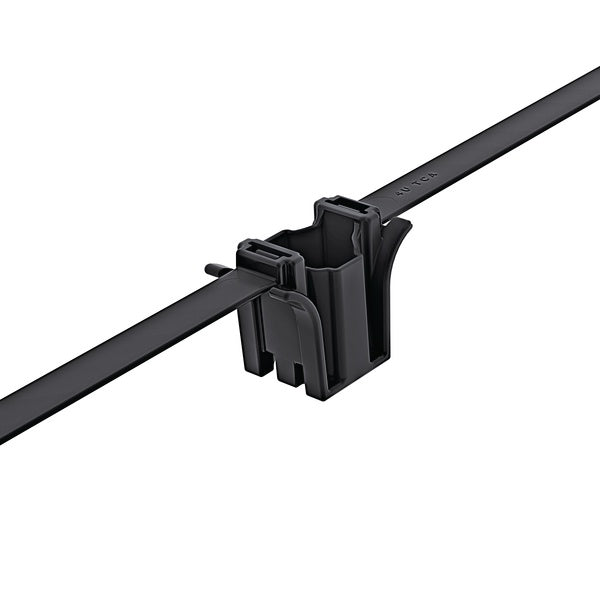

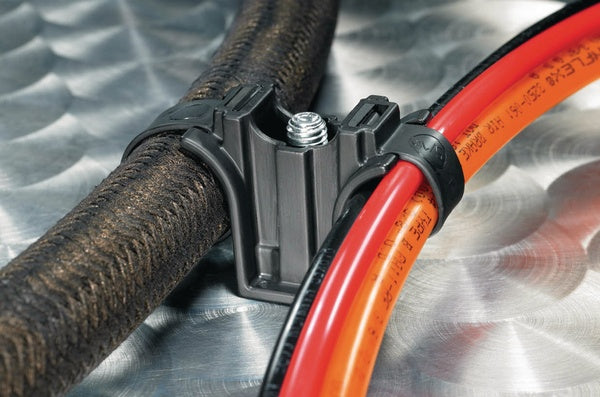

Stand Off Dual Clamp Ties offer the same features as the standard dual clamp tie, with a standoff mount that secures the bundle away from the side of the frame rail. This protects the bundles from bolts and other protrusions.
Stand Off Dual Clamp Ties offer the same features as the standard dual clamp tie, with a standoff mount that secures the bundle away from the side of the frame rail. This protects the bundles from bolts and other protrusions.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 117-00012 - Features
- Wide strap minimizes pinching of soft hoses and convoluted tubing.
- Clamping rails increase circumferential grip on varying bundle diameters.
- Locking stud mount pawls allow for easy hand insertion.
- Nut or weld nesting counterbore provides flush mountin at the base.
Specifications
Specifications
HellermannTyton - 117-00012 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Bundle Separators
- Dual Clamp Ties
HellermannTyton - 117-00012 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Size | 20" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 117-00012 - Base Data
| Article Number | 117-00012 |
|---|---|
| Type | SDCTR312 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Stand Off Dual Clamp Tie, 20.10" Long, 0.31" Stud Dia, PA66HIRHSUV, Black, 250/pkg |
| Global Part Name | SDCTR312-PA66HIRHSUV-BK |
HellermannTyton - 117-00012 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 100 |
|---|---|
| Minimum Tensile Strength (Metric) | 445 |
| Length L (Imperial) | 20.1 |
| Length L (Metric) | 510.5 |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.5 |
| Width W (Metric) | 12.7 |
| Bundle Diameter Min (Imperial) | 0.375 |
| Bundle Diameter Min (Metric) | 9.5 |
| Bundle Diameter Max (Imperial) | 2.3 |
| Bundle Diameter Max (Metric) | 58.4 |
| Height H (Imperial) | 1.47 |
| Height H (Metric) | 37.3 |
| Stud Diameter (Metric) | M8 |
| Stud Diamater (Imperial) | 2016-05-01 00:00:00 |
HellermannTyton - 117-00012 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.93E+09 |
HellermannTyton - 117-00012 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
