HellermannTyton 151-01206 | Edge Clip and Tape Clip, Panel Thickness 3.0-6.0mm, 1.97" Long, PA66HIRHS, Black, 5000/box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01206 | Edge Clip and Tape Clip, Panel Thicknes...
Description
Description

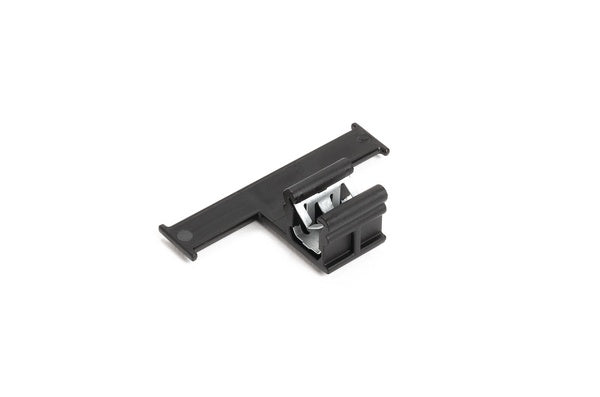

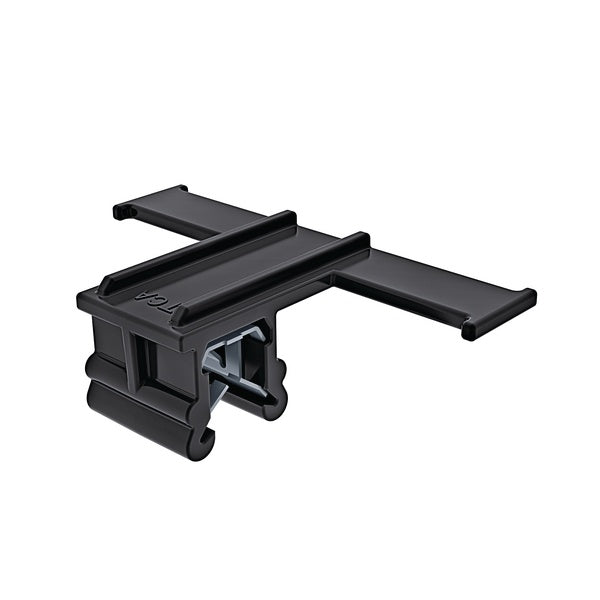

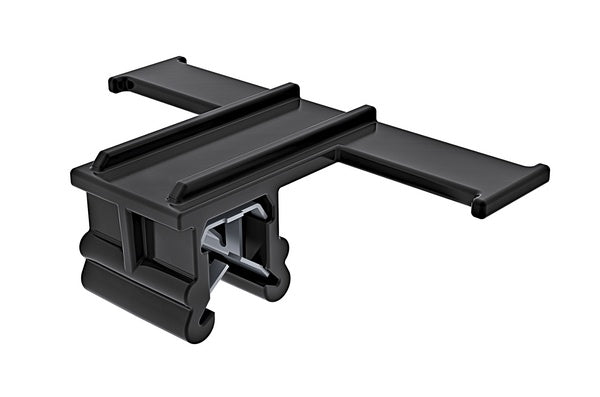

HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01206 - Features
- Edge clip applies easily to plastic and metal edges without the need for a mounting hole.
- Tape bar provides a convenient surface for securing a bundle using a cable tie or tape.
- Bench Mount Kit CPK facilitates converting the AT2000 CPK to a stationary position and increase bundling precision.
- Power Pack CPK with Control Box provides integration with automated processes, speeding production and reducing personnel requirements.
- HH20 screw mount wire retainer is used as a spacer for optimal bundling support.
- New counterbalanced overhead hanger system improves ergonomics, reducing fatigue-related injuries.
Specifications
Specifications
HellermannTyton - 151-01206 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-affixing Clips
- Edge Clips
HellermannTyton - 151-01206 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Clip - Cable, Self Adhesive |
| UNSPSC Code | 39121703 |
HellermannTyton - 151-01206 - Base Data
| Article Number | 151-01206 |
|---|---|
| Type | EC48 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Edge Clip and Tape Clip, EC48, Panel Thickness 3.0–6.0mm, 1.97" Long, PA66HIRHS, Black, 5000/box |
| Global Part Name | EC48-PA66HIRHS-BK |

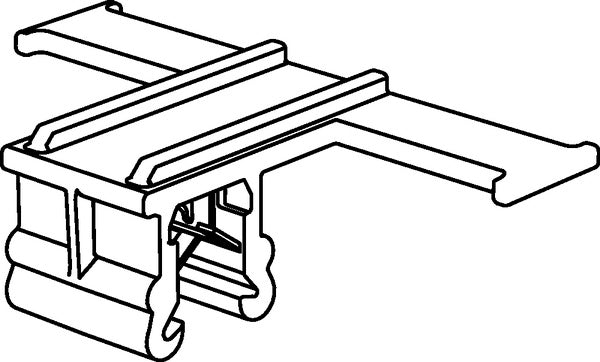

HellermannTyton - 151-01206 - Product Dimensions
| Length L (Imperial) | 1.97 |
|---|---|
| Length L (Metric) | 50 |
| Offset Length (Imperial) | 0.68 |
| Offset Length (Metric) | 17.25 |
| Width W (Imperial) | 1.17 |
| Width W (Metric) | 29.71 |
| Height H (Imperial) | 0.58 |
| Height H (Metric) | 14.83 |
| Panel Thickness Min (Imperial) | 0.12 |
| Panel Thickness Max (Imperial) | 0.24 |
| Panel Thickness Min (Metric) | 3 |
| Panel Thickness Max (Metric) | 6 |
HellermannTyton - 151-01206 - Logistic & Packaging
| Package Quantity (Imperial) | 5000 |
|---|---|
| Package Quantity (Metric) | 5000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01206 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
