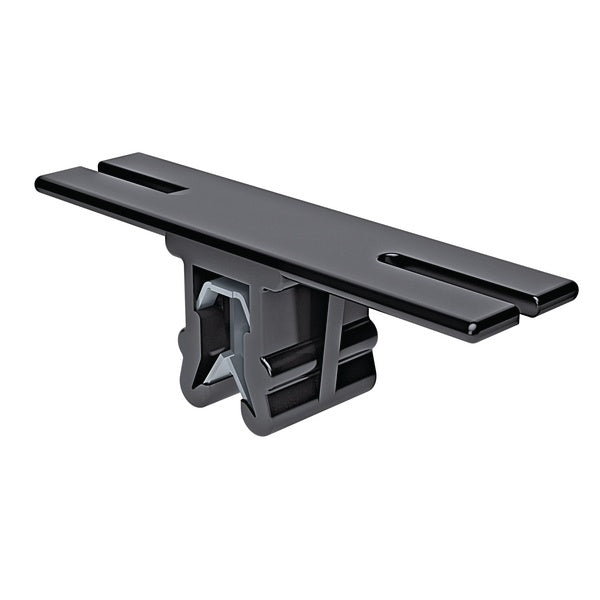

HellermannTyton 151-03401 | Edge Clip And Tape Clip, Ec15, Panel Thickness 0.04" - 0.12", 1.6" Long, Pa66Hirhs, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

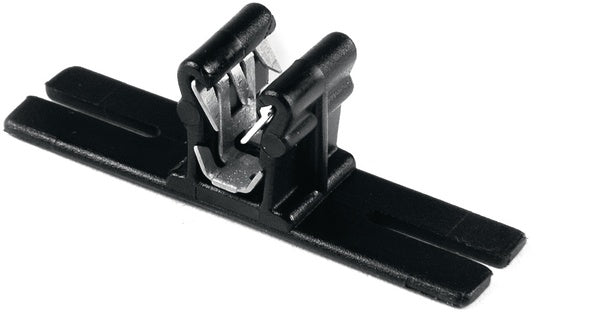

HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-03401 - Features

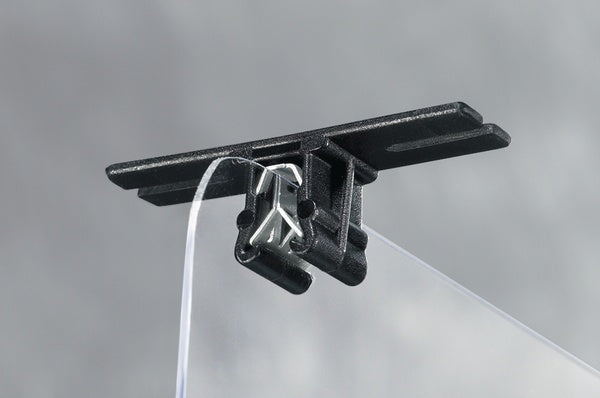

- Edge clip applies easily to plastic and metal edges without the need for a mounting hole.
- Tape bar provides a convenient surface for securing a bundle using a cable tie or tape.
- 2- or 4-way entry options for the Q Tie, offering flexibility and stability
Specifications
Specifications
HellermannTyton - 151-03401 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-affixing Clips
- Edge Clips
HellermannTyton - 151-03401 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-03401 - Base Data
| Article Number | 151-03401 |
|---|---|
| Type | EC15 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Edge Clip and Tape Clip, EC15, Panel Thickness 0.04" - 0.12", 1.6" Long, PA66HIRHS, Black, 500/pkg |
| Global Part Name | EC15-PA66HIRHS-BK |
HellermannTyton - 151-03401 - Product Dimensions
| Length L (Imperial) | 1.6 |
|---|---|
| Length L (Metric) | 40 |
| Fixation Method | Edge Clips |
| Width W (Imperial) | 0.39 |
| Width W (Metric) | 10 |
| Height H (Imperial) | 0.49 |
| Height H (Metric) | 12.5 |
| Panel Thickness Min (Imperial) | 0.04 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 3 |
HellermannTyton - 151-03401 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-03401 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
