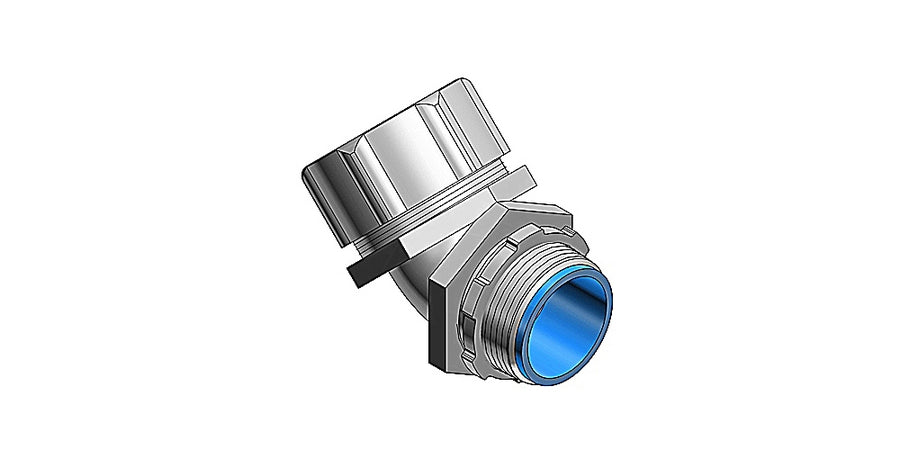

Thomas & Betts 5343 | Connector, 3/4 in., Liquid Tight, Insulated, Malleable Iron, 45 Degree
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Thomas & Betts 5343 | Connector, 3/4 in., Liquid Tight, Insulat...
Description
Description
3/4 in. 45 degree Malleable Iron Insulated Liquidtight Connector. NPT, ISO Metric and PG thread types. Coordinated performance with T&B Liquidtight Systems Flexible Metallic Conduits. Ingress protection ratings aligned with industrial enclosures. Safe Edge ground cones provide superior bonding. Double Bevel Sealing Ring eases assembly and insures seal tight performance. Heat curled insulators protect wire sheathing from damage. Revolver grounding version with GR part number suffix.
Specifications
Specifications
Thomas & Betts - 5343 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connector Hardware
- Electrical Connector Strain Relief
Thomas & Betts - 5343 - Specifications
| Brand Name | Thomas & Betts |
|---|---|
| Manufacturer Part Number | 5343 |
| Item Description | Connector, 3/4 in., Liquid Tight, Insulated, Malleable Iron, 45 Degree 3/4 in. 45 degree Malleable Iron Insulated Liquidtight Connector. NPT, ISO Metric and PG thread types. Coordinated performance with T&B Liquidtight Systems Flexible Metallic Conduits. Ingress protection ratings aligned with industrial enclosures. Safe Edge ground cones provide superior bonding. Double Bevel Sealing Ring eases assembly and insures seal tight performance. Heat curled insulators protect wire sheathing from damage. Revolver grounding version with GR part number suffix. |
| UPC | 78621005343 |
| Application | Used Where Flexible Metal Raceway Is Installed In Outdoor Or Indoor Locations Where Exposed To Continuous Or Intermittent Moisture. |
| Connection Angle | 45° |
| Connection Type | Insulated; Liquid Tight |
| Connector Angle | 45 Degree |
| Diameter | 0.75" |
| For Conduit Type | Flexible Metallic |
| Includes Pull Tape | No |
| Insulation | Insulated |
| Material | Malleable Iron |
| Product Type | Liquid-Tight Connector |
| Special Rating | Culus; Csa; Ce Certified |
| Thread Size | 3/4 In. |
| Thread Type | Npt |
| Trade Size | 3/4 In. |
| Approval | UL 514B, CE, CSA C22.2 |
