Klein Tools NCVT-5A | Non-Contact Voltage Tester Pen, Dual Range, w...
Description
Description

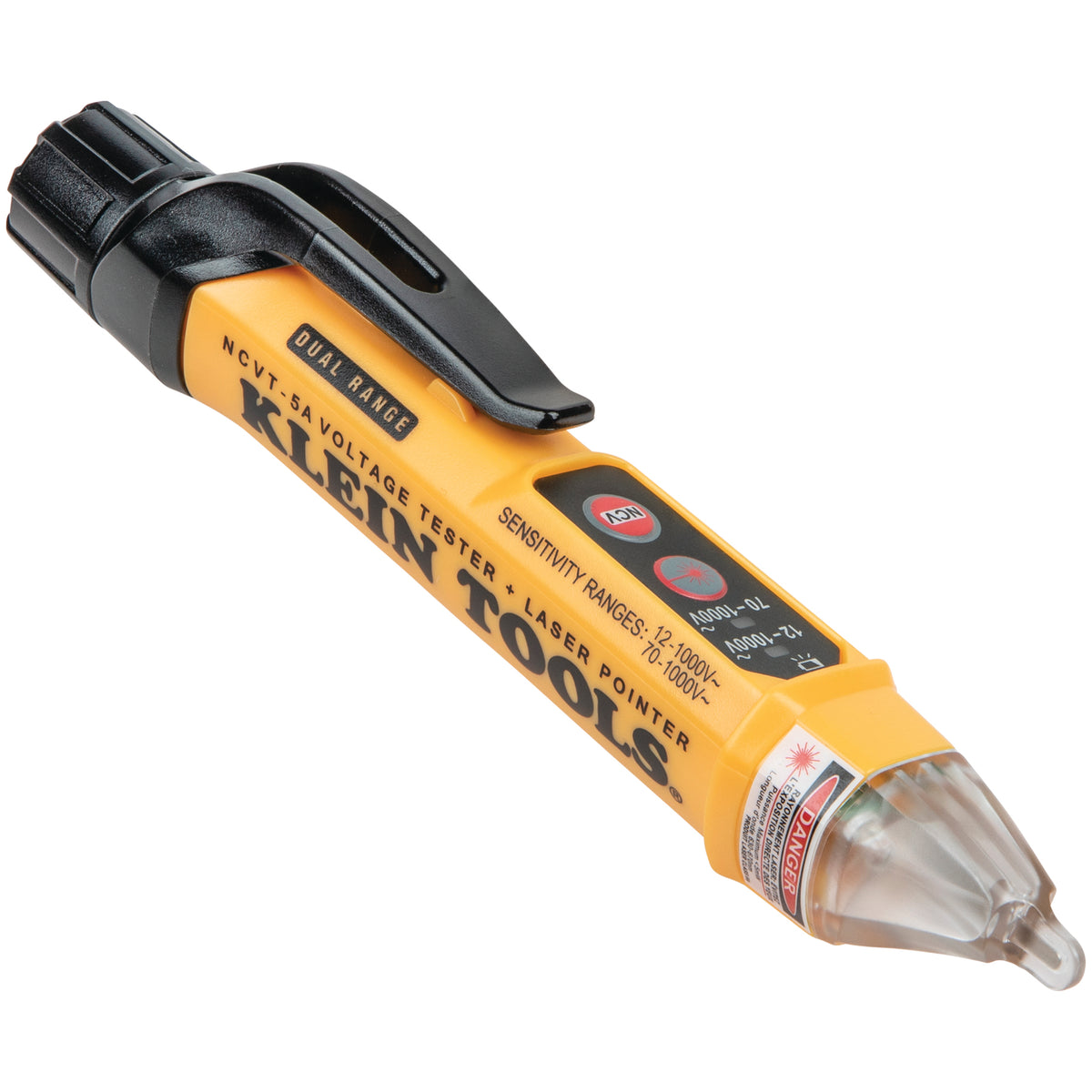

The Klein Tools NCVT-5A is a dual-range non-contact voltage tester (NCVT) with integrated laser pointer. The tester can be set to detect voltage from 70 to 1000V AC (Mode 1) or from 12 to 1000V AC (Mode 2). High pitched audible alerts beep at greater frequency as higher voltage is sensed, or proximity to the voltage source gets closer. The laser pointer can function independent of or simultaneously with the NCVT. CAT IV 1000V safety rating.
Specifications
Specifications
Klein Tools - NCVT-5A - Warnings
- Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
- Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
- LASER RADIATION, Class IIIa laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
Klein Tools - NCVT-5A - Product Categories
- Test & Measurement
- Electrical Testers
Klein Tools - NCVT-5A - Specifications
| Type: | Non-Contact Voltage Tester |
|---|---|
| Application: | Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000 VAC or from 70-1000V AC |
| Special Features: | Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985 |
| Material: | Plastic and Electronic Assemblies |
| Drop Protection: | 9.8' (3 m) |
| Voltage: | 12 to 1000 VAC |
| Frequency: | 50 to 500 Hz |
| Pollution Degree: | 2 |
| Standard: | CAT IV 1000V; Laser: Class IIIa, 630-670nm, Max Power <5mW |
| Included: | NCVT; Batteries |
| Batteries: | 2 x AAA |
| Battery Life: | Laser On: 31 hr; NCV On with Visual and Audible Alerts: 25 hr |
| Overall Length: | 6'' (15.2 cm) |
| Overall Height: | 1.16'' (2.9 cm) |
| Overall Width: | 0.96'' (2.4 cm) |
| Weight: | 1.5 oz (43 g) |
| UPC: | 92644692949 |
