Brand: Encore Wire
|
SKU:
C0784

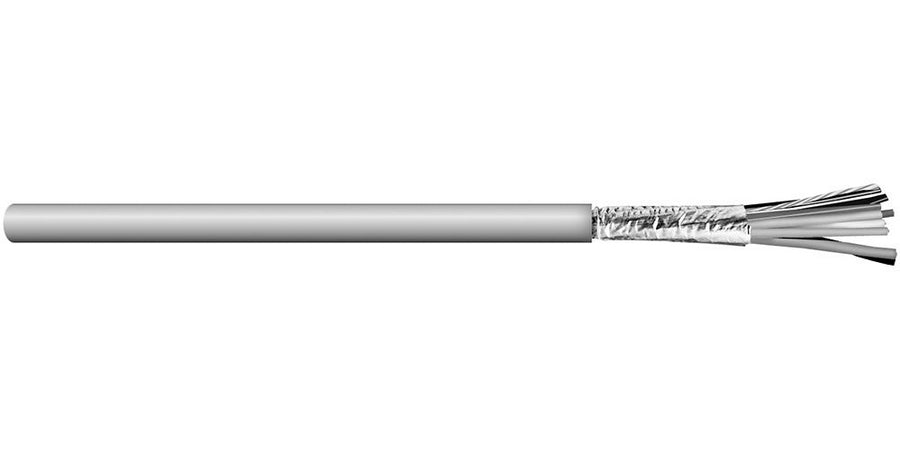

Encore Wire C0784A.41.10 | Multi-Conductor Cable, Red/Black, 8 Conductor, Tinned Copper, 20 AWG, 7/28, Stranded, Semi-Rigid PVC, Gray
Regular price
$1,658.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0784A.41.10 | Multi-Conductor Cable, Red/Black, 8 Cond...
Regular price
$1,658.71
Unit price
Description
Description
Encore Wire C0784A.41.10 | Multi-Conductor Cable, Red/Black, 8 Conductor, Tinned Copper, 20 AWG, 7/28, Stranded, Semi-Rigid PVC, Gray
This complete line of paired and unpaired, shielded computer cables-which are UL and CSA listed-are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications.
Specifications
Specifications
Encore Wire - C0784A.41.10 - Applications
- Supports computer interconnections where consistent signal integrity is needed.
- Enables data transmission in connected systems and equipment.
- Fits control circuits that carry control signals between devices.
- Works well in industrial equipment control wiring where noise protection is beneficial.
- Meets EIA RS-232 application needs.
Encore Wire - C0784A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0784A.41.10 |
| Color | Red/Black |
| Item Description | Multi-Conductor Cable, Red/Black, 8 Conductor, Tinned Copper, 20 AWG, 7/28, Stranded, Semi-Rigid PVC, Gray |
| Conductor Count | 8 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Impedance | 11 Ohm/1000 Ft. Conductor Dcr |
| Insulation Material | Pvc |
| Insulation Thickness | 0.016 In. (0.41 Mm) |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Foil Shield |
| Special Rating | Ce, Csa, Nec, Rohs, Ul |
| Temperature Rating | 80 Degrees Celsius |
| Voltage | 300 V |
