Brand: Belden
|
SKU:
B34490-FT

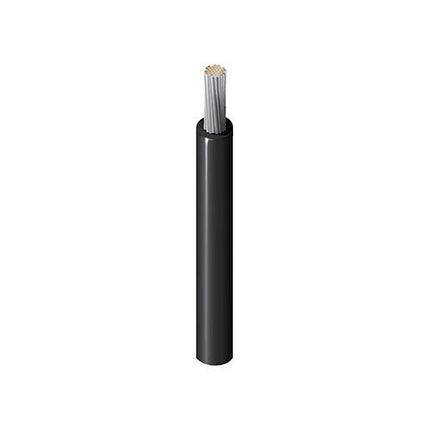

Belden 34490 010250 | Lead Wire, #1/0 Str TC, CSPE Ins, AWM 3193
Regular price
$33.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 34490 010250 | Lead Wire, #1/0 Str TC, CSPE Ins, AWM 3193
Regular price
$33.27
Unit price
Description
Description
Low Temp Rubber Lead Wire, 1/0AWG (805x26) Tinned Copper, CSPE Insulation, AWM 3193 CSA TYPE CL1052 600V 105C
Specifications
Specifications
Product Overview
| Suitable Applications | Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications |
|---|
Temperature Range
| UL Temp Rating | 105°C |
|---|---|
| Operating Temp Range | -30°C To +105°C |
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 300°F (149°C) |
|---|---|
| Min Bend Radius/Minor Axis | 2.43 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3193 |
|---|---|
| CSA Rating | 300 V RMS, 105°C |
| CSA Type | CL1052 |
