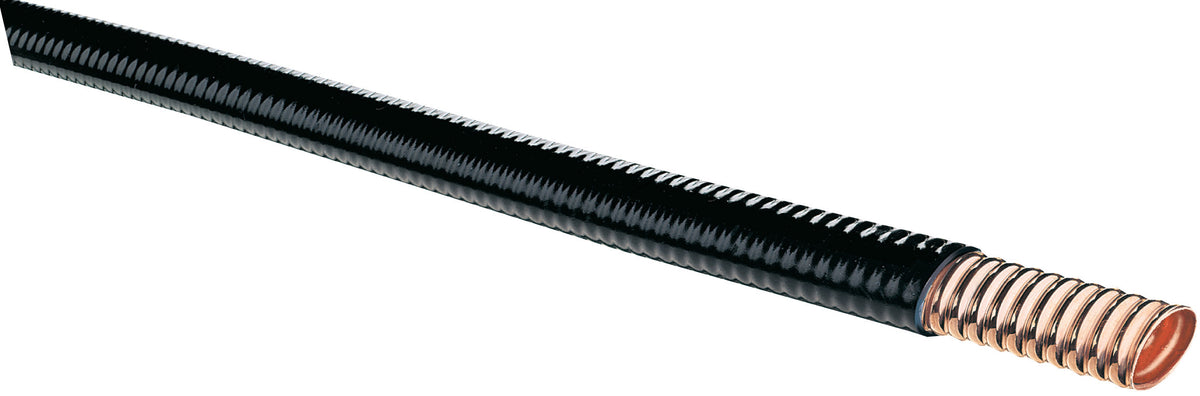

Commscope EWP180-180 | EWP180, HELIAX Premium Elliptical Waveguide, 17.7–19.7 GHz, black PE jacket
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope EWP180-180 | EWP180, HELIAX Premium Elliptical Waveguide,...
Regular price
$23.72
Unit price
Description
Description
Commscope EWP180-180 | EWP180, HELIAX Premium Elliptical Waveguide, 17.7–19.7 GHz, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Jacket Color | Black |
|---|---|
| Performance Note | Values typical, unless otherwise stated |
Dimensions
| Diameter Over Jacket (E Plane) | 20.1 mm / 0.791 in |
|---|---|
| Diameter Over Jacket (H Plane) | 12.4 mm / 0.488 in |
| Cable Volume | 111 L/km / 1.195 ft³/kft |
Electrical Specifications
| eTE11 Mode Cutoff | 11.15 GHz |
|---|---|
| Operating Frequency Band | 17.7 – 19.7 GHz |
Material Specifications
| Conductor Material | Corrugated copper |
|---|---|
| Jacket Material | PE |
Mechanical Specifications
| Minimum Bend Radius, Multiple Bends (E Plane) | 150 mm / 5.906 in |
|---|---|
| Minimum Bend Radius, Multiple Bends (H Plane) | 280 mm / 11.024 in |
| Minimum Bend Radius, Single Bend (E Plane) | 150 mm / 5.906 in |
| Minimum Bend Radius, Single Bend (H Plane) | 380 mm / 14.961 in |
| Maximum Twist | 6.562 °/m / 2 °/ft |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 23.889 °C / 75 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Temperature Rise | 42 °F / 107.6 °F |
Packaging and Weights
| Cable weight | 0.22 kg/m / 0.148 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
