Brand: Encore Wire
|
SKU:
C0763

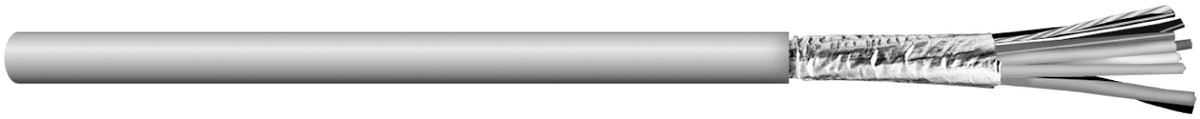

Encore Wire C0763A.41.10 | Multi-Conductor Cable, Blue, 6 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray, PVC, UL, 1000 ft
Regular price
$771.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0763A.41.10 | Multi-Conductor Cable, Blue, 6 Conductor...
Regular price
$771.59
Unit price
Description
Description
Encore Wire C0763A.41.10 | Multi-Conductor Cable, Blue, 6 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray, PVC, UL, 1000 ft
This complete line of paired and unpaired, shielded computer cables-which are UL and CSA listed-are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications.
Specifications
Specifications
Encore Wire - C0763A.41.10 - Applications
- Supports computer interconnections where shielded signal wiring is needed.
- Enables data transmission in systems that benefit from an Overall Shield & drain.
- Fits control circuits in equipment and panels requiring reliable signal and control performance.
- Works in industrial equipment control wiring where interference reduction is important.
- Meets EIA RS-232 applications.
Encore Wire - C0763A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0763A.41.10 |
| Color | Blue |
| Item Description | Multi-Conductor Cable, Blue, 6 Conductor, Tinned Copper, 22 AWG, 7/30, Stranded, Semi-Rigid PVC, Gray, PVC, UL, 1000 ft |
| Conductor Count | 6 Conductor |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Impedance | 16.5 Ohm/1000 Ft. Conductor Dcr |
| Insulation Material | Pvc |
| Insulation Thickness | 0.01 In. (0.25 Mm) |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. |
| Product Type | Multi-Conductor Cable |
| Shield Type | Foil Shield |
| Temperature Rating | 80 Degrees Celsius |
| Voltage | 300 V |
