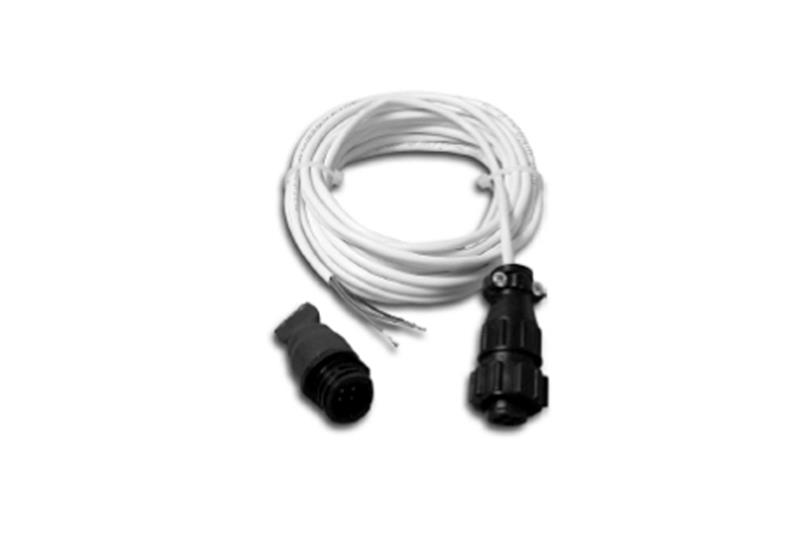

Chatsworth 60116-001 | Leak Detection Lead Cable for use with RIM-750 System

Key Features and Benefits

• Includes one 15’L (4.57 m) leader cable for attaching Sensor Rope(s), and an End of Line Terminator for attachment to the Sensor Rope
• Leader Cable: 22 AWG, 4-conductor cable, .121" (.307 cm) nominal outside diameter
• Standards: NEC Article 725-CL2P, CMP, MPP
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Operating Humidity: 5% to 95% RH, non-condensing
• Maximum Altitude: 15,000 ft (4,572m)
• Storage Temperature: -4°F to 158°F (-20°C to 70°C)
• Cable Length: 15 feet (4.57 meters)
• EOL Terminator Dimensions: 0.9"W x 2.0"L (22.9 mm x 50.8 mm)
• Weight: Cable-4.24 oz (120.2g); EOL-0.4 oz (11.3g)
• Material: Plastic housing
• Color: White/Black
