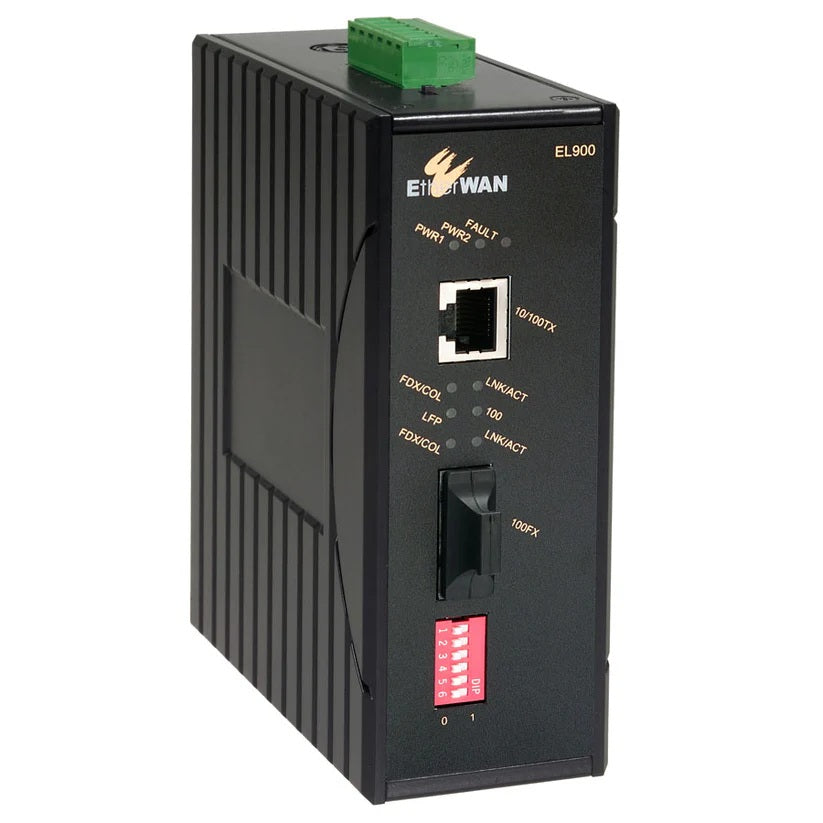

Etherwan Systems EL900-A-C-1-A | Hardened Media Convertor - 2Km, Mu...
Description
Description
Provides media conversion between 10/100BASE-T and Multi Mode (ST) - 2Km (1310nm) fiber. Built specifically for mission-critical applications in harsh environments, the EL900's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL900 is the ideal media converter for harsh environments
Etherwan Systems - EL900-A-C-1-A - Features
- Design and certified for Class I, Division 2 electrical equipment
- Link Fault Pass Through (LFPT)
- Alarms for power and link failure
- Highly qualified for explosive environmental applications and certified by UL with ISA12.12.01 Class I, Division 2 classified for use in hazardous locations
- -40°C to 75°C wide operating temperature range design is suitable for installation in outdoor cabinet
- LFPT function let network operators be aware of network connection status
- When fiber link is down, LFPT function will turn down Ethernet port to inform connected device that the link is down and vise versa
Specifications
Specifications
Etherwan Systems - EL900-A-C-1-A - Specifications
| Casing | Aluminum Case |
|---|---|

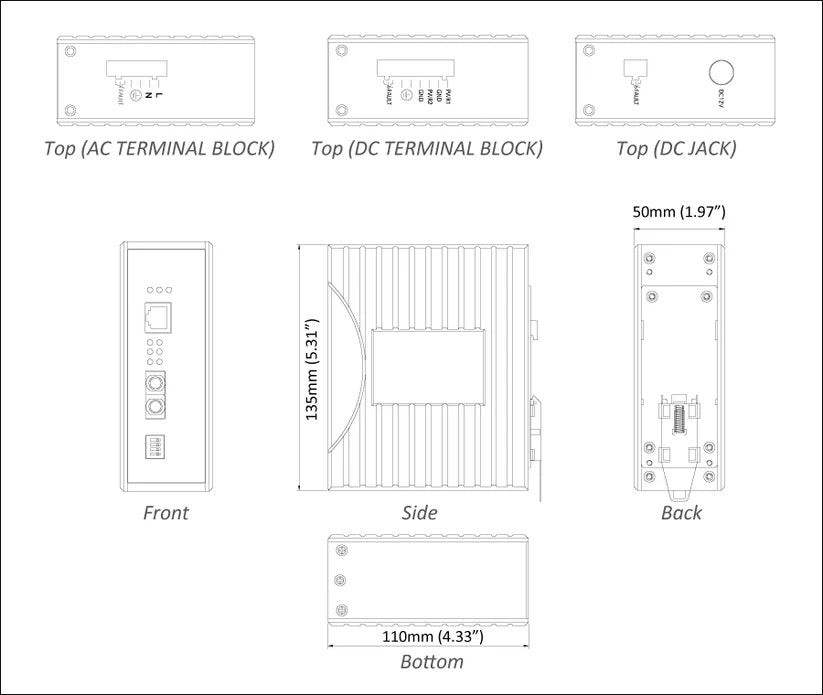

| Dimensions | 50mm x 110mm x 135mm (W x D x H) |
| Weight | 0.8Kg (1.76lbs.) |

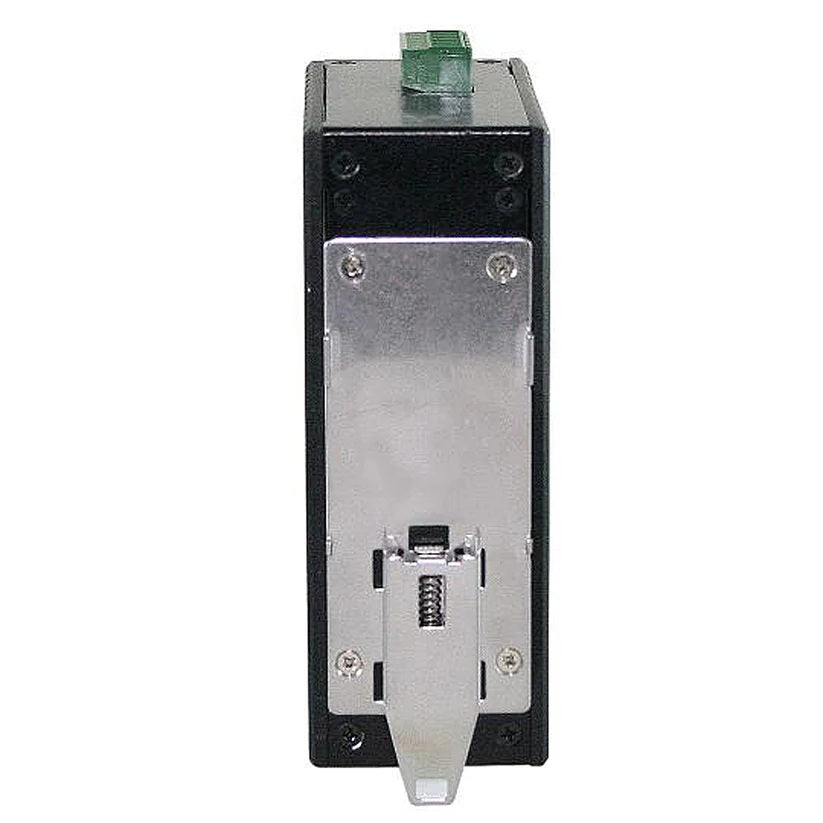

| Installation | DIN-Rail (top hat type 35mm) or panel mounting |
