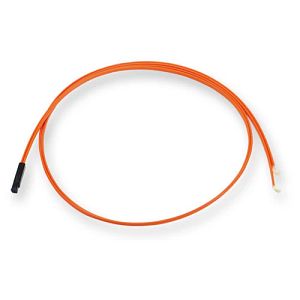

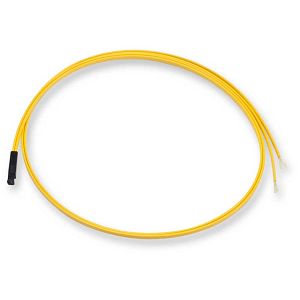

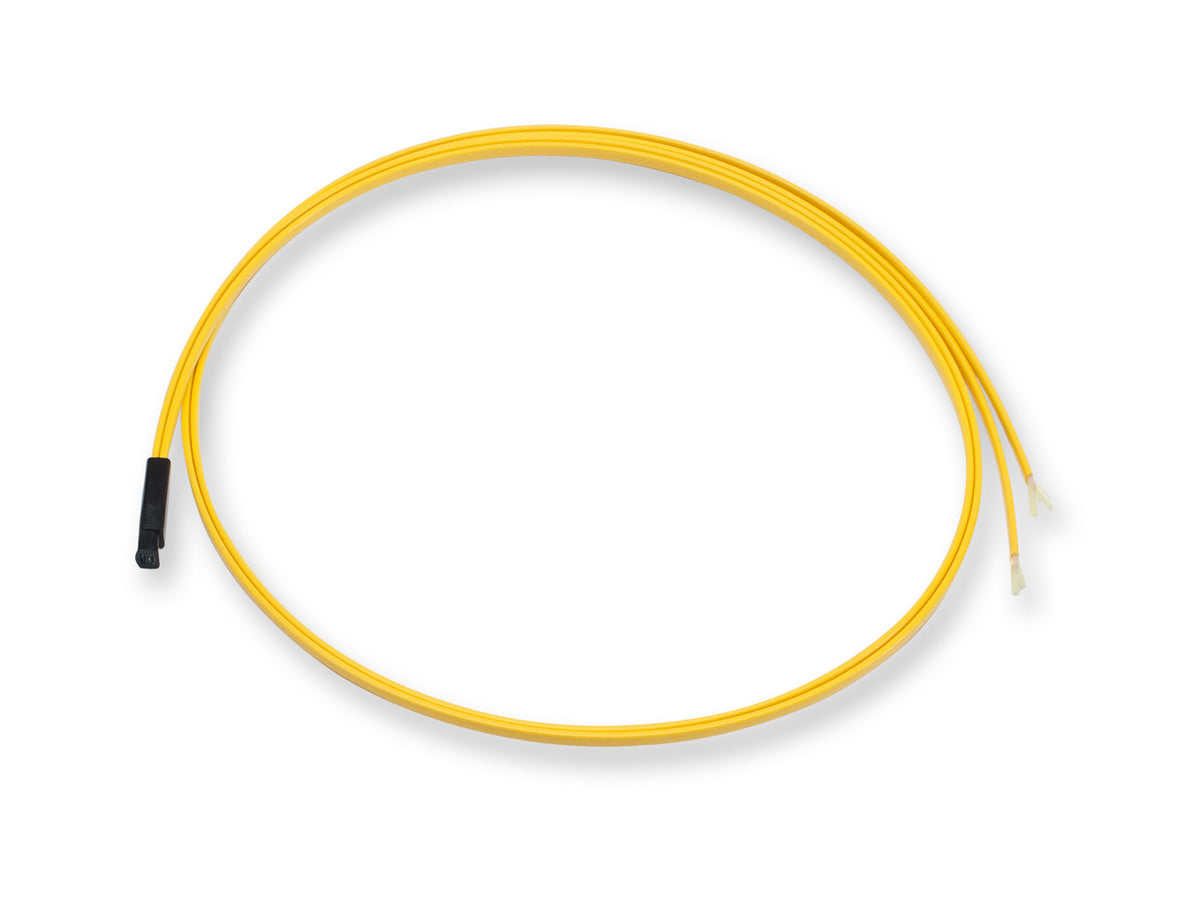

Corning INS-24F-RIB-H-Y | Ribbon Cable Spider Fan-Out Kit Insert
Description
Description
Corning ribbon cable spider fan-out kits provide a low-cost termination option. Offering the end user simple step-by-step assembly, these kits are designed for factory and field termination of single tube, non-armored ribbon cables with 24 to 96 fibers. Installation of the kits eliminates the need for patch panels at low-cost termination points. The ribbon cable spider fan-out kit terminates and provides pull-out protection for bare ribbons. The cable jacket is simply stripped back and the ribbons are threaded into the modular 12-fiber ribbon inserts consisting of two 1 m lengths of rectangular fan-out tubing secured in a composite assembly.
See the Resources tab, located on the individual part number pages, for the Spider Fan-Out Kits Quick Reference Guide. It will show you how to properly order/configure your spider fan-out kit part number.
Corning - INS-24F-RIB-H-Y - Features
- Designed for factory and field furcation
- Eliminates need for patch panel
- Snap-together fan-out insert
- Easy installation
- Three-layer protective tubing
- Ribbon protection
- Designed for factory and field furcation
- Eliminates need for patch panel Snap-together fan-out insert
- Easy installation Three-layer protective tubing
- Ribbon protection
Specifications
Specifications
Corning - INS-24F-RIB-H-Y - Product Categories
- Shop by Manufacturer/Corning
- Hardware
- Tools and Supplies
- Cable Termination Tools
- Fiber Optic Connectivity
- Fiber Optic Connectivity Accessories
Corning - INS-24F-RIB-H-Y - Specifications
| General Specifications | - |
|---|---|
| Product Number | INS-24F-RIB-H-Y |
| EAN Code | 4056418171258 |
| Environment | Indoor |
| Product Type | Fan-out Kits |
| Fanout Type | Ribbon Cable Spider |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR |
| Design | - |
| Cable Type | Ribbon Cable Spider Fan-Out |
| Fan-Out Tubing Color | Yellow |
| Insert orientation | Horizontal |
| Mechanical Specifications - Fan-Out Kit | - |
| Outer Diameter | 28 mm (1.1 in) |
| Tubing Length | 1000 mm (39.37 in) |
| Ordering Information | - |
| Weight | 0.45 kg |
| Package Contents | Horizontal Ribbon Spider Fan-Out Insert with Tubing |
| Units per Delivery | 5/1" |
