Panduit F91-40-L | Non-insulated Ferrules | UPC - 07498333353
Description
Description

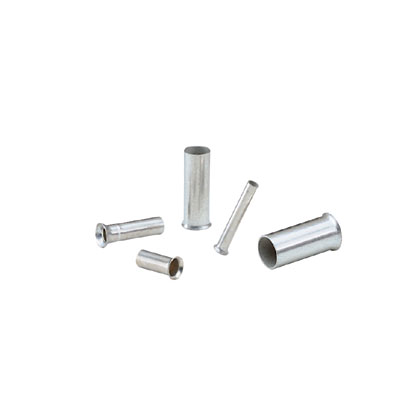

Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Large, 4/0 AWG Conductor, 40 mm Length, Seamless Barrel, 3/4 in OD Barrel, 1-3/4 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
- Polypropylene insulation housing
- Designed specifically for use with the ferrule applicator SCA-712022002 (CA10) for high volume applications
- Continuously molded design provides consistent placement of ferrules in applicator to ensure fast, reliable terminations
Panduit Panduit F91-40-L | Non-insulated Ferrules | UPC - 07498333353 Key Specs
| Insulation Material | Non-Insulated |
| Wire Strip Length (In.) | 1.57 |
| Wire Strip Length (mm) | 40 |
| Pin Length (In.) | 1.57 |
| Pin Length (mm) | 40 |
| Inside Diameter (In.) | 0.65 |
| Inside Diameter (mm) | 16.5 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.69 |
| Outer Diameter (mm) | 17.5 |
| Overall Length (In.) | 1.57 |
| Overall Length (mm) | 40 |
| Product Type | Non-insulated Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
Panduit Panduit F91-40-L | Non-insulated Ferrules | UPC - 07498333353 Environmental Information
| Panduit's RoHS Statement | Download and View |
