Brand: Panduit
|
SKU:
10044405

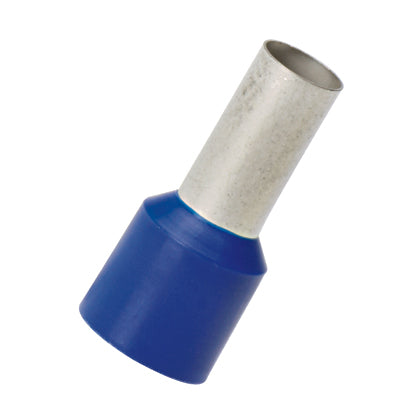

Panduit FSDX84-12-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333378
Regular price
$56.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSDX84-12-C | Insulated single wire ferrules (DIN or French...
Regular price
$56.14
Unit price
Description
Description
Panduit Pan-Term Wire Ferrule, Type FSDX Loose Piece Single Insulated, 6 AWG Conductor, 0.91 in Length, Seamless Barrel, 0.24 in ID Barrel, Specifications: 0.47 in L Pin, 5/8 in Wire Strip, Polypropylene Insulation, 221 deg F, Copper, TiN Coated, Blue
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Panduit Panduit FSDX84-12-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333378 Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.63 |
| Wire Strip Length (mm) | 15.9 |
| Pin Length (In.) | 0.47 |
| Pin Length (mm) | 12 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.37 |
| Insulation Diameter (mm) | 9.5 |
| Inside Diameter (In.) | 0.23 |
| Inside Diameter (mm) | 5.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.37 |
| Maximum Wire Insulation Diameter (mm) | 9.5 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
Panduit Panduit FSDX84-12-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333378 Environmental Information
| Panduit's RoHS Statement | Download and View |
