Brand: Panduit | SKU: 10044410

Panduit FSDXL81-10-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333383

$56.14

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

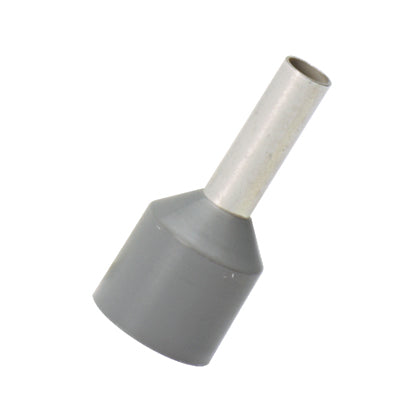

Panduit Ferrule, Type FSDX Loose Piece Single Insulated, Stranded Conductor, 12 AWG Conductor, 0.77 in Length, Seamless Barrel, 0.11 in ID x 0.77 in L Barrel, Specifications: 0.31 in Dia Maximum Wire Insulation, 0.53 in Mounting Hole Size, 17/32 in L Wire Strip, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Gray

Designed with a seamless barrel to contain loose wire strands for superior terminations
Eases insertion of wire into terminal block
Meets DIN, UL and CSA standards for wire containment

Panduit Panduit FSDXL81-10-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333383 Key Specs

Insulation Material	Polypropylene
Flammability Rating	UL 94 HB
Wire Strip Length (In.)	0.53
Wire Strip Length (mm)	13.5
Pin Length (In.)	0.39
Pin Length (mm)	10
Insulation Type	Polypropylene
Insulation Diameter (In.)	0.31
Insulation Diameter (mm)	7.8
Inside Diameter (In.)	0.11
Inside Diameter (mm)	2.9
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Maximum Wire Insulation Diameter (In.)	0.31
Maximum Wire Insulation Diameter (mm)	7.8
Outer Diameter (In.)	0.13
Outer Diameter (mm)	3.3

Panduit Panduit FSDXL81-10-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333383 Environmental Information

Panduit's RoHS Statement

Download and View
