Panduit FSDXL84-12-C | Insulated single wire ferrules (DIN or Frenc...
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

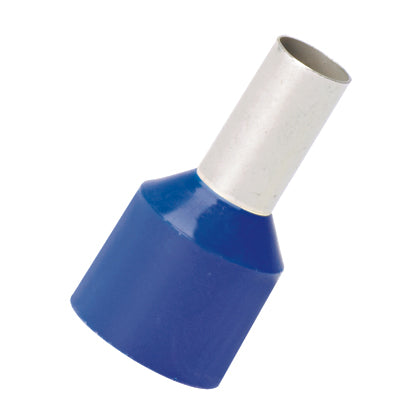

Panduit Pan-Term Wire Ferrule, Type FSDXL Expanded Sleeve Single Insulated, Stranded Conductor, 6 AWG Conductor, 1 in Length, Seamless Barrel, 0.24 in ID x 0.47 in L Barrel, 600 VAC, Specifications: Polypropylene Insulation, 221 deg F, Copper, TiN Coated, Blue
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Panduit Panduit FSDXL84-12-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333386 Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.63 |
| Wire Strip Length (mm) | 15.9 |
| Pin Length (In.) | 0.47 |
| Pin Length (mm) | 12 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.37 |
| Insulation Diameter (mm) | 12 |
| Inside Diameter (In.) | 0.24 |
| Inside Diameter (mm) | 6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.47 |
| Maximum Wire Insulation Diameter (mm) | 12 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
Panduit Panduit FSDXL84-12-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333386 Environmental Information
| Panduit's RoHS Statement | Download and View |
