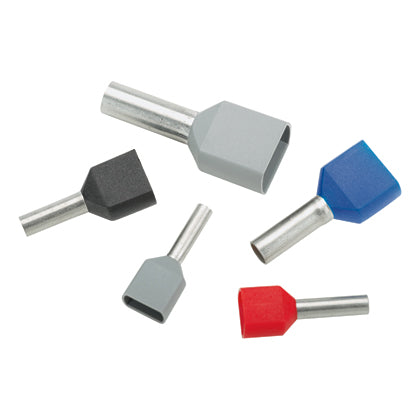

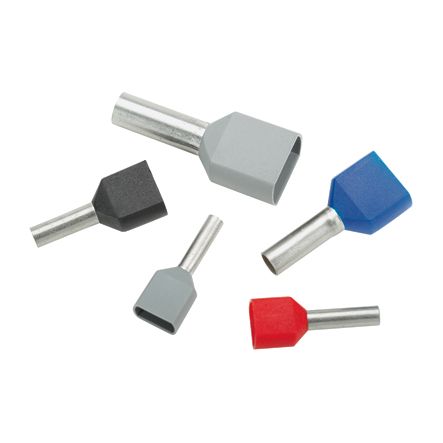

Panduit FTD75-8-D | Twin wire ferrule | UPC - 07498376305
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type FTD Insulated Twin, Stranded Conductor, 20 AWG Conductor, 0.59 in Length, Seamless Barrel, 0.18 in OD Barrel, 7/16 in L Wire Strip, 0.12 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, White
Features + Benefits
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Panduit FTD75-8-D | Twin wire ferrule | UPC - 07498376305 Key Specs
| Note | UL with 20 AWG wire only |
| Ferrule Type | Twin Wire |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 22 - 20 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.2 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.06 |
| Inside Diameter (mm) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.09 |
| Maximum Wire Insulation Diameter (mm) | 2.4 |
| Overall Length (In.) | 0.59 |
Panduit FTD75-8-D | Twin wire ferrule | UPC - 07498376305 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Catalog Cut Sheets | Insulated Ferrules - Twin Wire DIN End Sleeve | Download and View |
| Videos | Panduit Ferrule Installation Machine Video 16:9 CP-991 | Download and View |
Panduit FTD75-8-D | Twin wire ferrule | UPC - 07498376305 Environmental Information
| Panduit's RoHS Statement | Download and View |
