Brand: Panduit
|
SKU:
681424

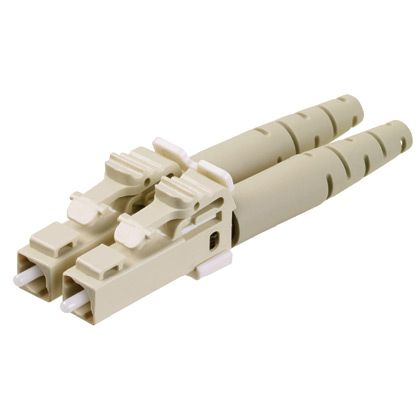

Panduit FLCDMEIY | Field Polish LC Connector, Duplex, 62.5µm Multimode, 1.6mm Electric Ivory Boot
Regular price
$23.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FLCDMEIY | Field Polish LC Connector, Duplex, 62.5µm Multim...
Regular price
$23.69
Unit price
Description
Description
Panduit FLCDMEIY | Field Polish LC Connector, Duplex, 62.5µm Multimode, 1.6mm Electric Ivory Boot
Our high-performance field polish LC fiber optic connector can be polished on-site, making it versatile and suitable for high-density, high-speed networks in telecom rooms, LANs, and data centers.
Panduit OptiCam Fiber Optic Connector, Field Polished, Keyed LC Duplex Connector, OM1 Multimode Fiber, 1.6 to 2 mm Jacketed Cable, Zirconia Ceramic Ferrule, Plastic, Electric Ivory
Panduit - FLCDMEIY - Features
- Rear pivot latch design, robust construction
- Low profile latch resists cable snagging
- Wide positive grip thumb latch
- Audible click upon successful mating
- Field installable duplex clip with integrated polarity markers
- One connector body design for both simplex and duplex applications
- Protective cap locks onto connector latch with audible click
- Anaerobic adhesive field installation
- Rugged body construction
- Independent free floating ferrules
Specifications
Specifications
Panduit - FLCDMEIY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCDMEIY |
| Polish Type | Field Polish |
| Fiber Type | OM1 |
| Connection Type | Keyed LC Duplex |
| Application | Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications for high-speed data transmissions. |
| Body Style | Duplex |
| Color | Electric Ivory |
| Boot Color | Electric Ivory |
| Backbone Color | Electric Ivory |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.035 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.1 |
| Minimum Connector Return Loss (dB) | 20 |
| UPC | 07498304743 |
Panduit - FLCDMEIY - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
