Panduit FX8RP7NUSQNF003 | Harness Cable Assembly | UPC - 07498398023
Description
Description
To meet the needs for fiber cable plant migration to higher speeds, Panduit offers 4 to 1 conversion harness assemblies. As part of the Panduit High speed Data Transport (HSDT) solution, these passive fiber cables provide a cost effective solution for interconnecting high speed switches equipped with MPO modular transceivers to switches equipped with LC transceivers. The PanMPO end is wired as four separate transmit and receive fibers which are connected to four LC connector ends. The four LC connector ends can be directly attached to co-located switch gear or connected to an existing LC based structured cabling system to allow for distribution to different locations in the data center.

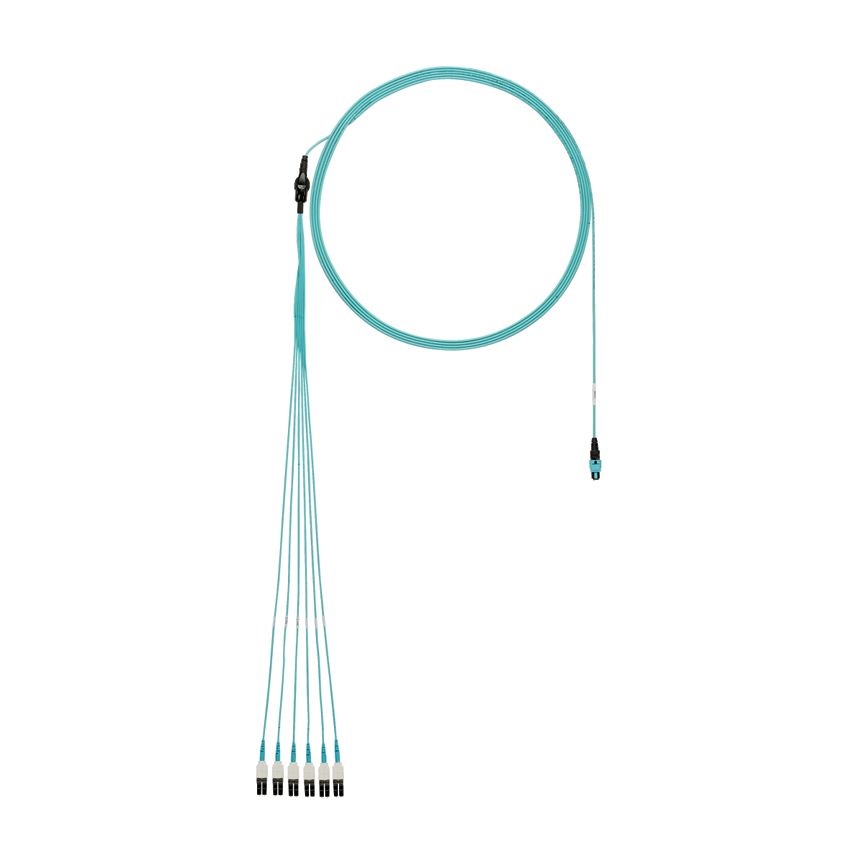

Panduit QuickNet PanMPO Harness Cable Assembly, 8-Fiber 4 to 1 Conversion OM3 OFNP Multi-Mode Round, MPO Female End A, LC Uniboot End B, 3 ft Length, Aqua
Features + Benefits
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Cost effective solution for interconnecting high speed switches and allows for distribution to different locations in the data center
Panduit FX8RP7NUSQNF003 Key Specs
| Note | QuickNet Patch Panel, MPO FAP |
| Fiber Type | OM3 |
| Number of Fibers | 8 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | LC Uniboot |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 3 |
| Overall Length (m) | 0.9 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | 32 |
| Environment | Indoor |
| Maximum Installation Temperature (°C) | 50 |
| Maximum Installation Temperature (°F) | 122 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant |
| Flammability Rating | Plenum |
| Product Type | Harness Cable Assembly |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Application | Interconnection of MPO modular transceiver ports with multiple LC modular ports |
| Cable Color | Aqua |
| Part Features | Cost-effective solution for interconnecting high speed switches and allows for distribution to different locations in the data center. |
Panduit FX8RP7NUSQNF003 Data Sheets
| Part Drawings | PanMPO to LC Uniboot 8-fiber Harness Cable Assembly: M02680FT-DC | Download and View |
| Installation Documents | OM3 8 Fiber Round Harness PanMPO: FBPANMPOLCUBHRNSFS046 | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | QuickNet 4 to 1 Conversion Harness Cable Assemblies | Download and View |
| Installation Documents | PanMPO Connector Changeover Instructions (For PanMPO Connectors only) | Download and View |
| Application Guides | Deploying Fiber Cabling in the Data Center | Download and View |
