Brand: Panduit
|
SKU:
688596

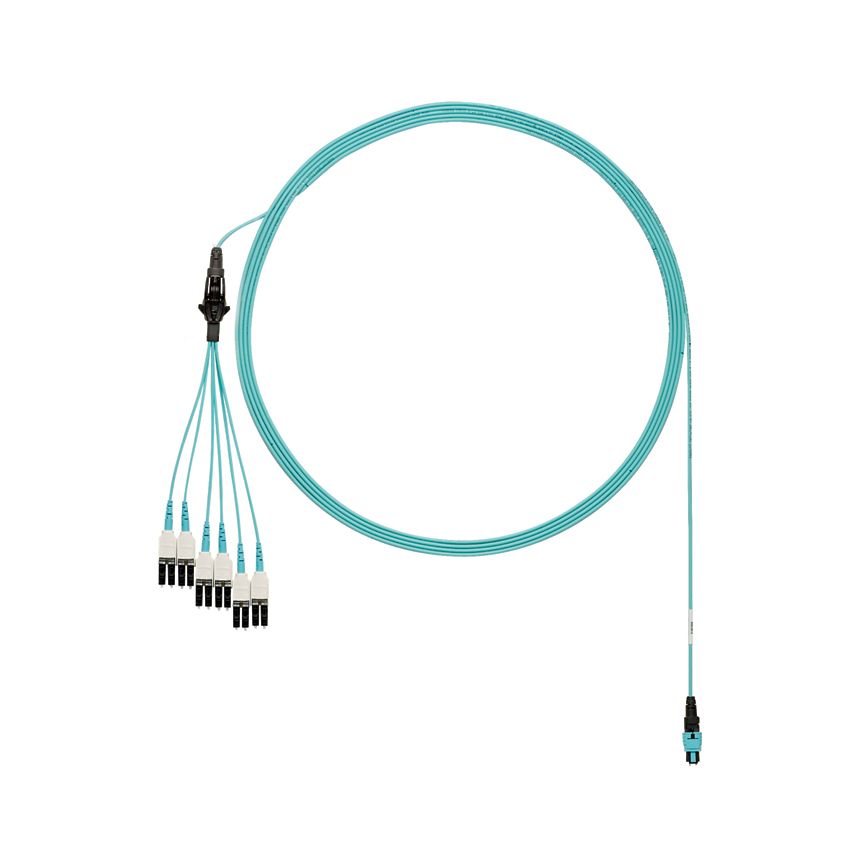

Panduit FXTRP8NUHSNF078 | Harness Cable Assembly | UPC - 07498375901
Regular price
$979.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FXTRP8NUHSNF078 | Harness Cable Assembly | UPC - 07498375901
Regular price
$979.11
Unit price
Description
Description
OM3 12-fiber, round harness cable assembly, plenum (OFNP) rated, PanMPO Male to LC Uniboot, staggered pairs 1 and 2 longest, Std IL, Aqua, 78 ft.
Panduit FXTRP8NUHSNF078 Key Specs
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Male |
| Connector 2 Type | LC Uniboot |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 78 |
| Overall Length (m) | 24.1 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Environment | Indoor |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum |
| Product Type | Harness Cable Assembly |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Application | Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas. |
| Cable Color | Aqua |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
Panduit FXTRP8NUHSNF078 Data Sheets
| Part Drawings | PanMPO to LC Uniboot Harness Cable Assemblies: M02680FV-DC | Download and View |
| Technical References | Testing 40GBASE-SR Links using Panduit Ref. Cords and JDSU Certifier: FBTR118--WW-ENG | Download and View |
| Technical References | Transmission Speeds and Max. Channel Length: FBTR122--WW-ENG | Download and View |
| Installation Documents | PanMPO to LC Uniboot Cable Harness | Download and View |
| Specification Sheets | PanMPO and MPO Round Harness Cable Assemblies: FBSP93--WW-ENG | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Installation Documents | PanMPO Connector Changeover Instructions (For PanMPO Connectors only) | Download and View |
