Brand: Corning
|
SKU:
973227

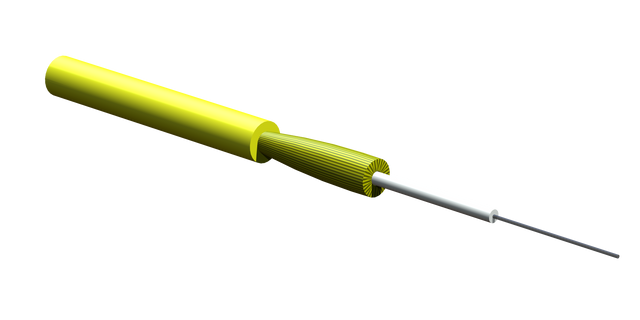

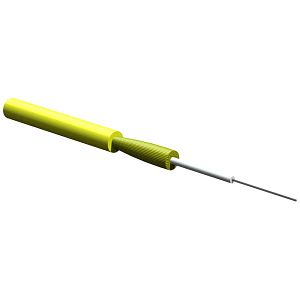

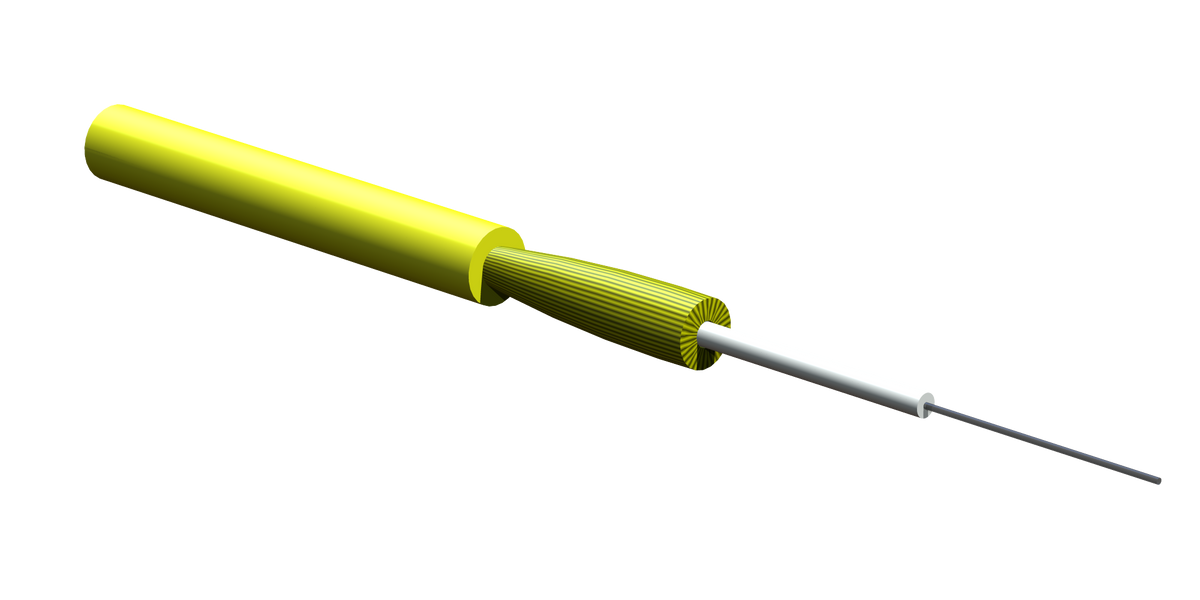

Corning 001U2F-31531-B2 | Reel in a Box, ClearCurve Rugged Drop, Indoor/Outdoor, Tight-Buffered Cable
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 001U2F-31531-B2 | Reel in a Box, ClearCurve Rugged Drop, In...
Regular price
$1.46
Unit price
Description
Description
Corning 001U2F-31531-B2 | Reel in a Box, ClearCurve Rugged Drop, Indoor/Outdoor, Tight-Buffered Cable 1 F, ClearCurve ZBL Single-mode (OS2)
Reel in a Box is Corning's innovative packaging solution for small reels of fiber optic cable in all inside plant applications, such as collocation data centers and wireless projects.
Enabled by a truly bend -insensitive fiber, this rugged drop cable can be bent to a minimum bend radius of 5 mm (0.2 in) and be directly stapled to wall studs and rafters with standard cable staples and hardware -store variety staple guns.
Corning - 001U2F-31531-B2 - Features
- Backward compatible with all industry ITU-G.652 single-mode fiber
- Meets industry standards and eliminates installation complexity
- Minimum bend radius of 5 mm
- Ideal for tight-bend deployments
- Riser-rated (OFNR) cable design
- Indoor vertical riser and general-purpose horizontal applications
- Convenient contractor-sized packaging
- Easy field deployment
- Higher bandwidth-carrying capacity, smaller outer diameter, lighter weight, smaller minimum bend-radius
- Outperforms typical CAT 5e or CAT 6 cable for MDU applications
Specifications
Specifications
Corning - 001U2F-31531-B2 - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 001U2F-31531-B2 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 001U2F-31531-B2 |
| Environment | Indoor/Outdoor |
| Cable Type | Drop |
| Product Type | Interconnect |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 1 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, FT-4 |
| Design and Test Criteria | ANSI/ICEA S-104-696, ICEA 730, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -5 °C to 60 °C (23 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Cable Marking | Print in ft |
| Fiber Count | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable dielectric strength members |
| Fiber Coloring | Blue |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 150 N (33.72 lbf) |
| Max. Tensile Strength, Short-Term | 450 N (101.16 lbf) |
| Min. Bend Radius Installation | 5 mm (0.2 in) |
| Min. Bend Radius Operation | 5 mm (0.2 in) |
| Nominal Outer Diameter | 4.8 mm (0.19 in ) |
| Optical Characteristics | - |
| Fiber Code | U |
| Fiber Name | ClearCurve ZBL |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.657.B3/G.652.D |
| Ordering Information | - |
| Weight | 21 kg/km (14.11 lb/1000 ft) |
| Packaging Method | Reel, 1000 feet |
