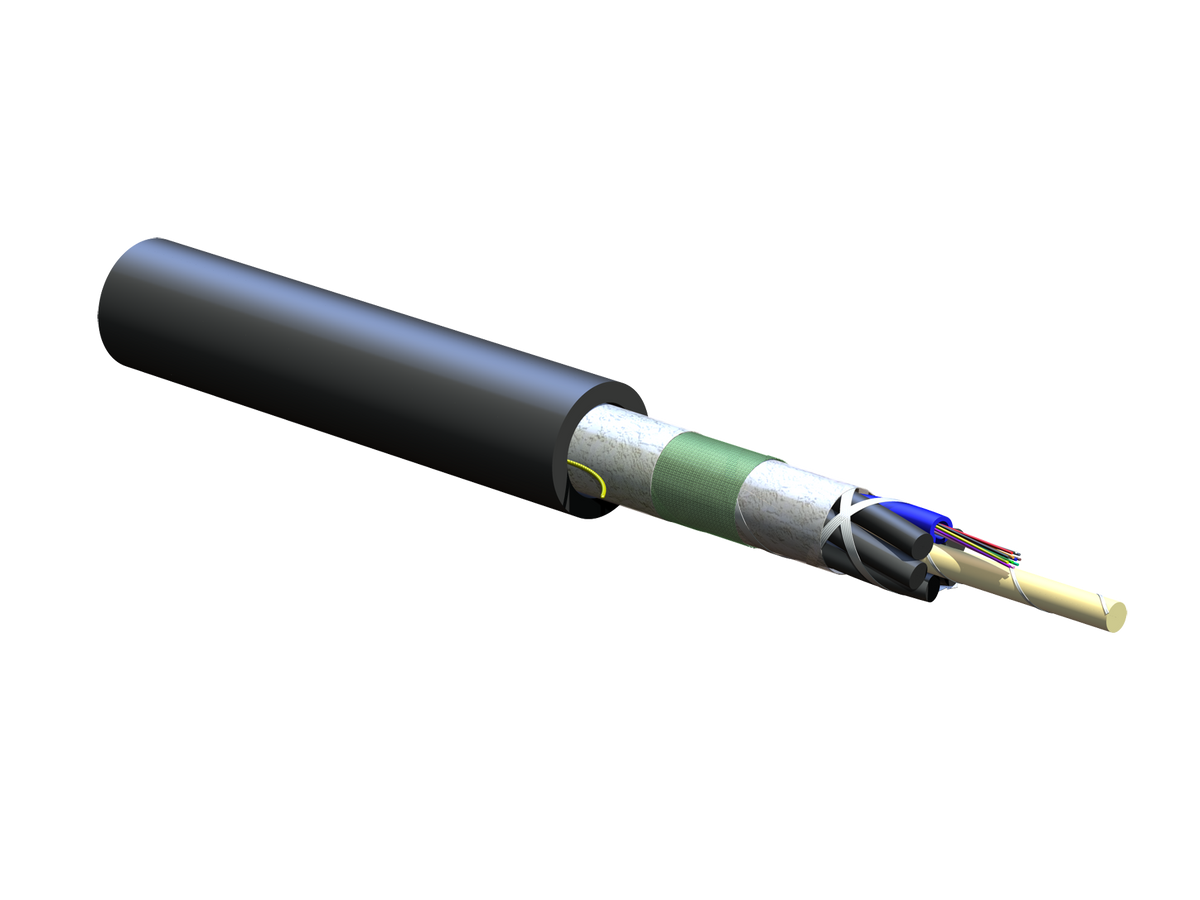

Corning 012EUZ-T4101D20 | LSZH Loose Tube, Gel-Free, Single-Jacket Cable 12 F, Single-mode (OS2)
Corning - 012EUZ-T4101D20 - Features
- Low-smoke, zero-halogen sheath
- Key life-safety benefit
- Meets cyclic impact and chemical resistance test
- Superior performance
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 012EUZ-T4101D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor - Outdoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor LSZH Cables
Corning - 012EUZ-T4101D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012EUZ-T4101D20 |
| EAN Code | 4056418174204 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | LSZH (OFN-LS) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034 |
| Common Installations | Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2, No. 230 and No. 232, CSA OFC (FT-4-S1) |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

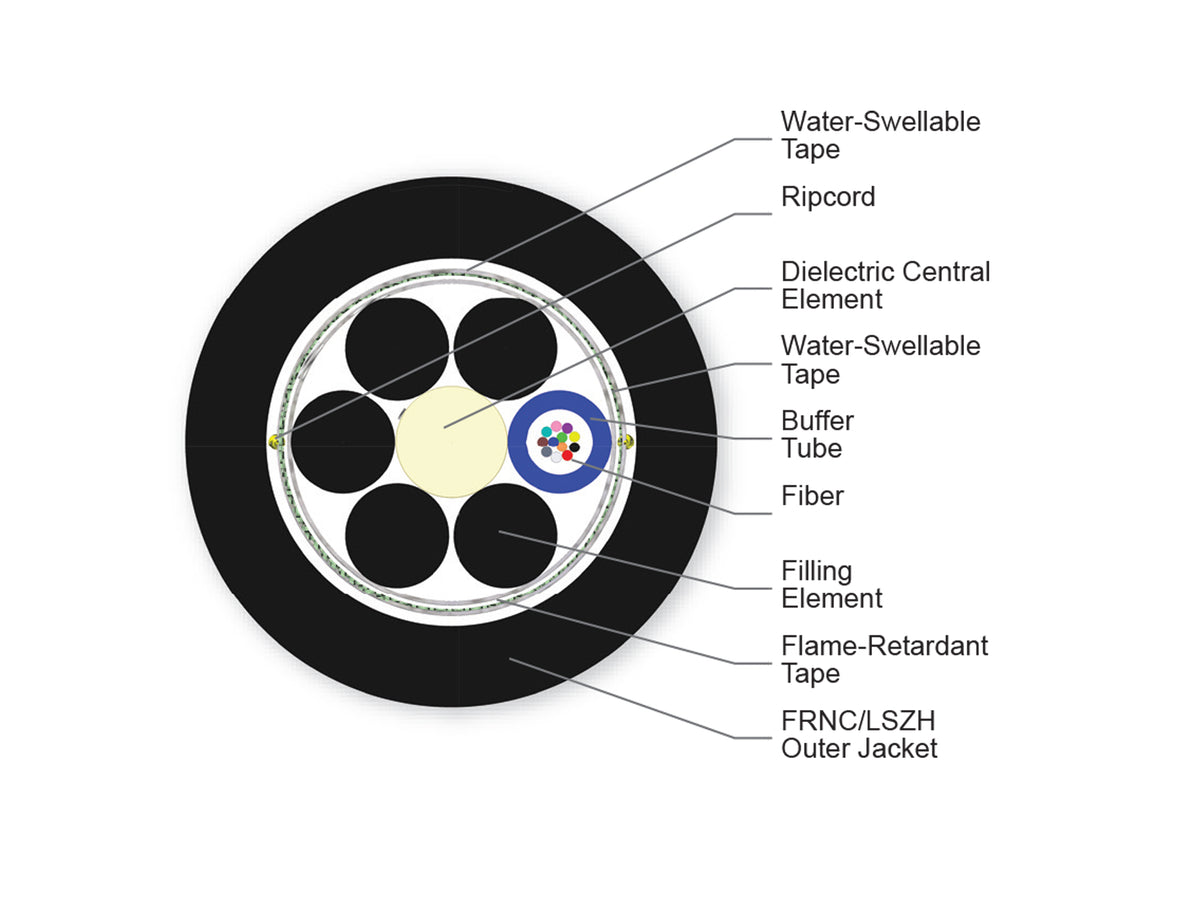

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Blue |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-retardant |
| Buffer Tube Color | Blue |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 1 |
| Number of Filling Elements | 5 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810 N (182.1 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 192 mm (7.56 in) |
| Min. Bend Radius Operation | 128 mm (5.04 in) |
| Nominal Outer Diameter | 12.8 mm (0.5 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 152 kg/km (102.14 lb/1000 ft) |
| Fiber Count | 12 |
| Application | Indoor/Outdoor |
| Jacket Flame Rating | LSZH |
| Outside Diameter | 0.49 in. (12.5mm) |
| Type | Indoor Outdoor Cable |
| Cable Type | Loose Tube |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Material | Flame Retardant |
| Jacket Color | Black |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
