Brand: CommScope
|
SKU:
1010699

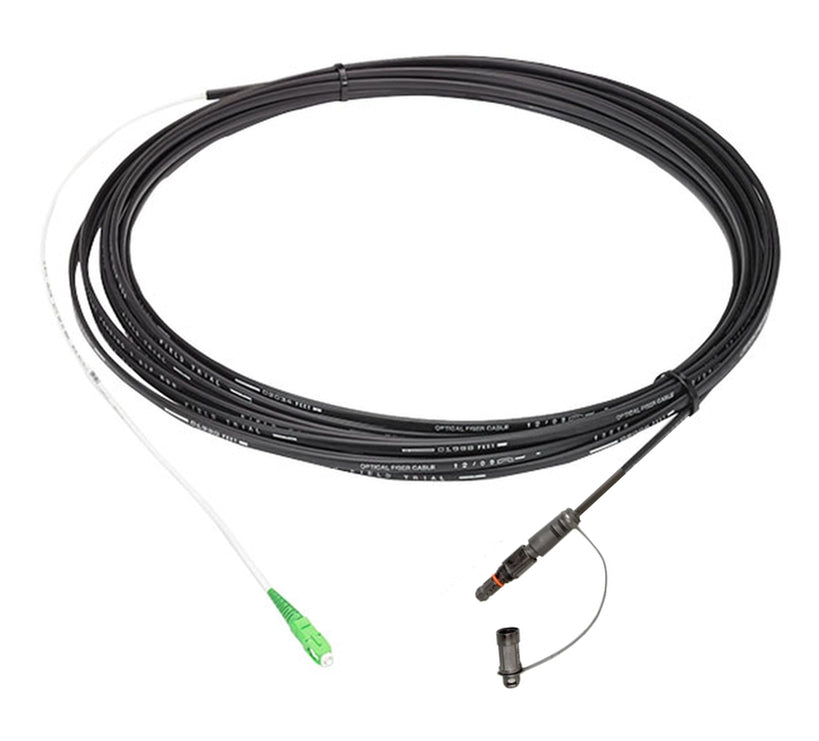

Commscope FHD-XJ1C-0070M | DLX Fiber Optic Hardened Drop Cable Assembly, DLX-SC/APC, universal flat dielectric | No Spool | Cable Assembly Length - 70 M
Regular price
$151.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FHD-XJ1C-0070M | DLX Fiber Optic Hardened Drop Cable Asse...
Regular price
$151.49
Unit price
Description
Description
Commscope FHD-XJ1C-0070M | DLX Fiber Optic Hardened Drop Cable Assembly, DLX-SC/APC, universal flat dielectric | No Spool | Cable Assembly Length - 70 M
Features and Benefits
- Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
- Hardened drop cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
- Hardened drop cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Representative Image
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber drop cable assembly |
| Product Brand | DLX |
| Product Series | FHD |
| Ordering Note | Drops are automatically coiled 0 to 1,000 ft (305 m), unless spool option L or R is specified for this range of length / Drops are automatically spooled at 1,001 ft (306 m) with connector B deploying first from spool |
General Specifications
| Cable Type | Dielectric - Universal Flat |
|---|---|
| Color, boot A | Black |
| Color, boot B | Green |
| Color, connector A | Black |
| Color, connector B | Green |
| Connector A, quantity | 1 |
| Connector B, quantity | 1 |
| Interface, Connector A | Hardened mini-size DLX |
| Interface Feature, connector A | Male |
| Interface, Connector B | SC/APC |
| Interface Feature, connector B | Male |
| Jacket Color | Black |
| Total Fibers, quantity | 1 |
| Transmission Standards | IEC 61753-1 / IEC 61754-4 / IEC 61755 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 900 |
|---|---|
| Cable Assembly Length Range (ft) | 1 – 3000 |
| Cable Outer Diameter | 4.6 x 8.0 mm (0.18 x 0.31 in) |
Mechanical Specifications
| Minimum Bend Radius, loaded | 92 mm / 3.622 in |
|---|---|
| Minimum Bend Radius, unloaded | 64 mm / 2.520 in |
| Tensile Load, long term, maximum | 400 N / 89.924 lbf |
| Tensile Load, short term, maximum | 1334 N / 299.895 lbf |
| Cable Crush Resistance, maximum | 22 N/mm / 125.623 lb/in |
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.657.A2 |
| Insertion Loss, maximum, connector A | 0.4 dB |
| Insertion Loss, maximum, connector B | 0.4 dB |
| Return Loss, minimum, connector A | 65 dB |
| Return Loss, minimum, connector B | 65 dB |
Environmental Specifications
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Outdoor, buried |
| Jacket UV Resistance | UV stabilized |
| Qualification Standards | NEMA type 6, 10 ft waterhead / Telcordia GR-20 / Telcordia GR-3120 |
Packaging and Weights
| Cable weight | 34 kg/km / 22.847 lb/kft |
|---|---|
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
