Brand: CommScope | SKU: 783629

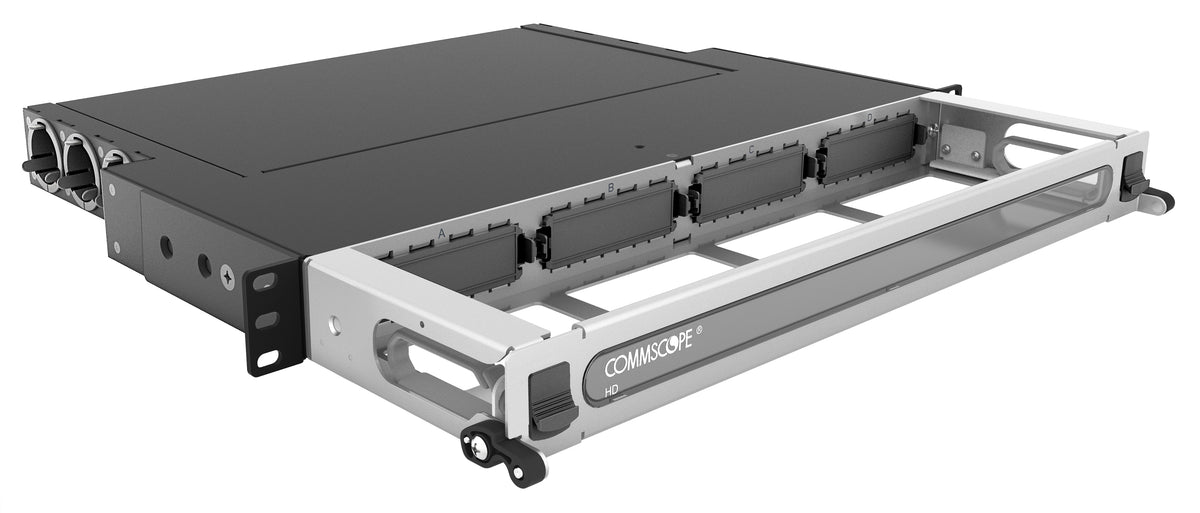

Commscope HD-1U-FX | High Density 1U modular cassette fixed Panel, accepts (4) G2 modules or MPO panels, providing up to 48 duplex LC ports, or up to 32 MPO ports

$370.26

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope HD-1U-FX | High Density 1U modular cassette fixed Panel, accepts (4) G2 modules or MPO panels, providing up to 48 duplex LC ports, or up to 32 MPO ports

Specifications

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio	CommScope
Product Type	Fiber patch panel
Product Series	HD

General Specifications

Application	Accepts four G2 modular cassettes
Color	Black / Silver
Intelligence Type	iPatch ready
Rack Type	EIA 19 in
Rack Units	1
Shelf Movement	Fixed

Dimensions

Height	44.45 mm / 1.75 in
Width	482.6 mm / 19 in
Depth	458.98 mm / 18.07 in
Material Thickness	0.9 mm / 0.035 in

Material Specifications

Material Type	Steel

Environmental Specifications

Flammability Rating	UL 94 V-0

Packaging and Weights

Packaging quantity	1
Weight, net	4.082 kg / 9 lb

Regulatory Compliance/Certifications

ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
