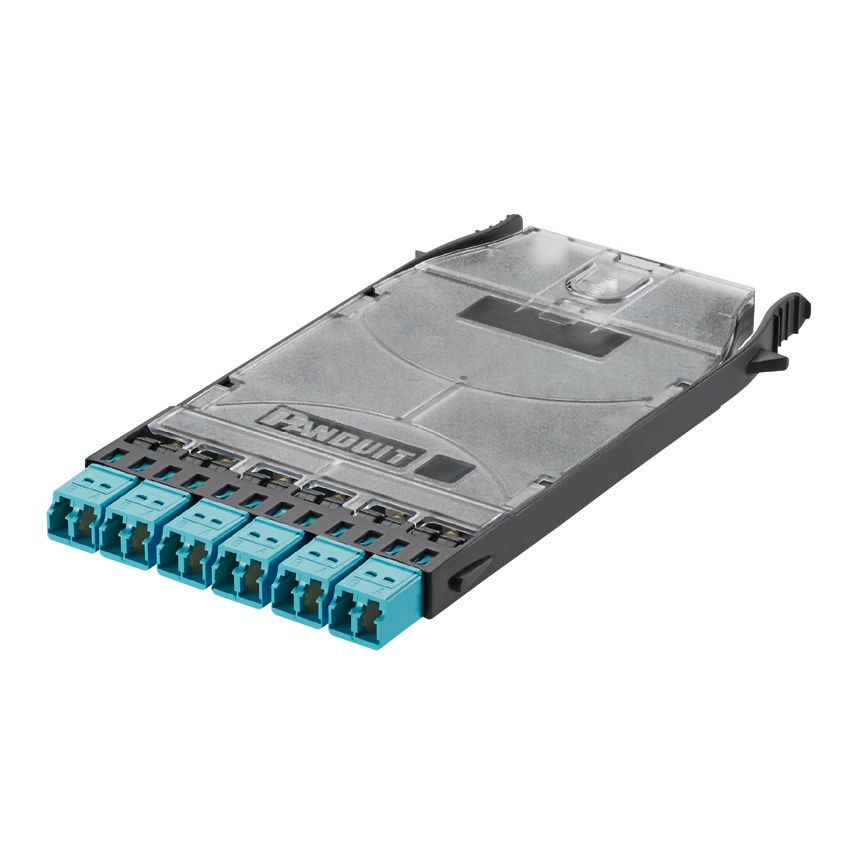

Panduit FHSXN-12-10N | HD Flex™ Fiber Optic Splice Cassette
Description
Description
This 6-Port HD Flex LC Splice/FAP cassette features duplex LC multimode adapters. The adapters are aqua with zirconia sleeves. The LC pigtails are not included.
Our fiber optic splice cassette provide a secure and organized way to permanently join multiple fiber optic cables within your data centers, reducing clutter and improving network manageability.
This 6-Port HD Flex LC Splice/FAP cassette features duplex LC multimode adapters. The adapters are aqua with zirconia sleeves. The LC pigtails are not included.
Panduit - FHSXN-12-10N - Features
- Without pulling eye
- Applications: Cable Management
Specifications
Specifications
Panduit - FHSXN-12-10N - Specifications
| Type | Splice Module |
|---|---|
| UNSPSC Code | 43223300 |
| Technical Information | Meets or exceeds: ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS Compliant |
| Fiber Type | OM3 |
| Connection Type | LC Duplex |
| Sub Brand | HD Flex™ |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Adapter Color | Aqua |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.15 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 7.5 |
| Overall Width (mm) | 190.4 |
| Overall Height (In.) | 0.46 |
| Overall Height (mm) | 11.7 |
| Overall Depth (In.) | 7.3 |
| Overall Depth (mm) | 184 |
| Product Type | LC Splice/FAP Cassette |
| Application | Cable Management |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds: ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS Compliant |
| Color | Black |
| Fiber Diameter (µm) | 50 |
| UPC | 07498303892 |
Panduit - FHSXN-12-10N - Package Information
| UPC | 07498303892 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0561 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.5609 |
