Corning OSE-LD0-W0-1-L | Optical Splice Enclosure (OSE) Universal
Description
Description

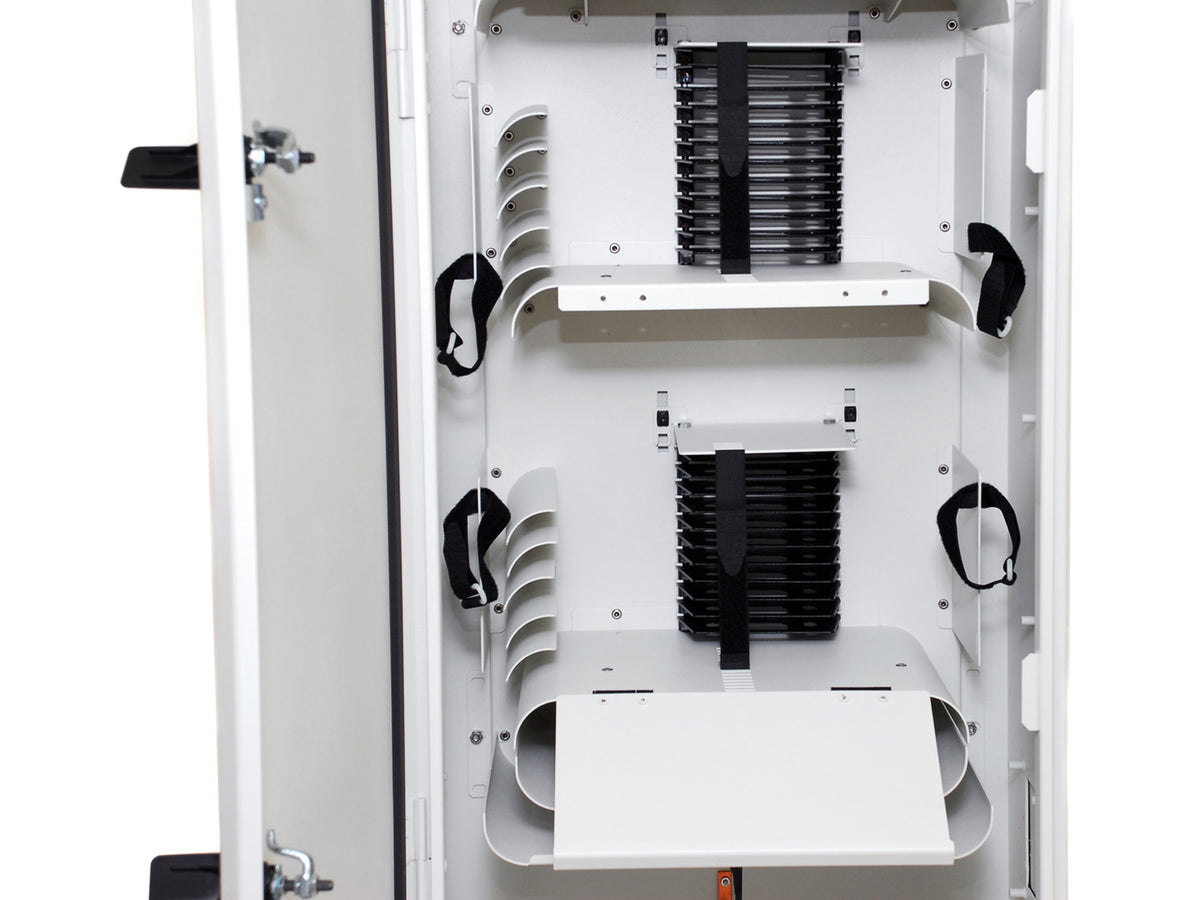

81.3 H x 55.9 W x 25.4 cm D Measures, Corning universal optical splice enclosures (OSE) are designed to manage the transition between outside plant cables and fire -retardant indoor riser cables in fiber optic networks.
The universal OSEs were designed with flexibility in mind. An adjustable interior back plate and removable cable entry plates accommodate top -only, bottom -only or top and bottom cable entries. The removable cable entry plates also enable custom -entry options, including midspan and combination entry configurations.
Each universal OSE features a full range of capabilities for wall, 23 -in rack and T -slot mounting. The T -slot mounting hardware allows for both horizontal and vertical mounting and enables tight, side -by -side mounting arrangements. In addition, universal OSEs are especially well -suited for installations that require preconnectorized cable assemblies or stubbed optical patch panels. In these installations, the universal OSE can actually replace the rack -mounted splice unit typically required. Corning offers two versions of the Universal OSE.
The high -density universal OSE (OSE -HD0) was designed for today’s higher density fiber distribution systems. Each OSE -HD0 supports up to 1440 single -fiber splices or 360 mass fusion splices (4320 fibers) from as many as 46 cables. The low -density universal OSE (OSE -LD0) supports up to 576 single -fiber splices or 144 mass fusion splices (1728 fibers) from as many as 28 cables.
Corning - OSE-LD0-W0-1-L - Features
- Cable entry plates allow various entry options including standard cable entry and midspan cable access
- Routing and storage components are attached to a removable backplate that adjusts to accommodate top or bottom cable entry
- Routing and guide plates and routing clips provide excellent fiber management
- Accommodates specially designed high-density splice trays, although other splice trays can be used
- OSE-HD0 supports up to 1440 loose tube single-fiber splices or 4320 mass fusion ribbon splices
- OSE-LD0 supports up to 576 loose tube single-fiber splices or 1728 mass fusion ribbon splices
- Horizontal pass-through ports provided near top and bottom of cabinet sides
- Locking option for additional security
- Save time, reduces risk
Specifications
Specifications
Corning - OSE-LD0-W0-1-L - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Fiber Optic Closures
- Fiber Optic Splice Closures
- Fiber Optic Hardware
- Cabinets
Corning - OSE-LD0-W0-1-L - Specifications
| General Specifications | - |
|---|---|
| Product Number | OSE-LD0-W0-1-L |
| EAN Code | 4056418192239 |
| Product Type | Wall-Mountable Hardware |
| Mounting Type | Rack 23-in, Wall-Mountable |
| Design | - |
| Splice Trays Capacity | 12 |
| Cable Entry per Top (Bottom Plate) | 0/10/4 (1.125 in/1.375 in/1.750 in) |
| Locking Availability | Single Door |
| Product Family | Splice Enclosure |
| Punch-outs per Removable End Plate | 15 (1.375 in)4 (1.750 in)4 (1.125 in) |
| Total splice capacity | 576 single-fiber splices or 1728 mass fusion splices |
| Dimensions | - |
| Height | 813 cm |
| Ordering Information | - |
| Shipping Weight | 34 kg |
| Width | 559 cm |
| Depth | 254 cm |
| Units per Delivery | 1/1" |
