Panduit FLCDMC6EIY | OptiCam Fiber Optic Connectors, LC OptiCam
Regular price
$57.62
Unit price
Description
Description

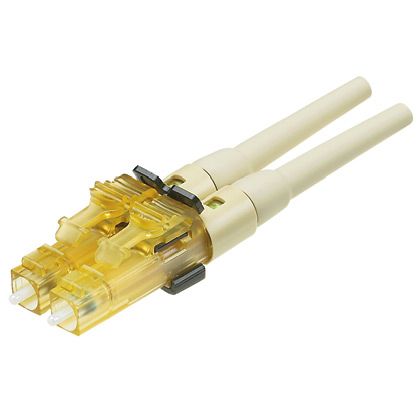

Panduit FLCDMC6EIY | OptiCam Fiber Optic Connectors, LC OptiCam
Pre-Polished LC Duplex OptiCam Style OM1 Connector, Natural Housing with 900um Electric Ivory Boot
Panduit - FLCDMC6EIY - Features
- Applications: Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect.
- Technical Info: Exceeds the TIA/EIA-568-B.3 requirements
Specifications
Specifications
Panduit - FLCDMC6EIY - Product Categories
- Communications
- Communications
- Communications
- Fiber Optic Systems
- Fiber Optic Connectors
Panduit - FLCDMC6EIY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FLCDMC6EIY |
| Item Description | OptiCam Fiber Optic Connectors, LC OptiCam |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Pre-Polished |
| Fiber Type | OM1 |
| Connection Type | LC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Duplex |
| Color | Electric Ivory |
| Boot Color | Electric Ivory |
| Backbone Color | Electric Ivory |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | Exceeds the TIA/EIA-568-B.3 requirements |
| Product Type | Fiber Optic Connectors, LC OptiCam |
| Connector Type | Lc |
| Fiber Type | Om1 Multimode |
| UNSPSC Code | 43223300 |
Panduit - FLCDMC6EIY - Package Information
| UPC | 07498312706 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0032 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.0324 |
