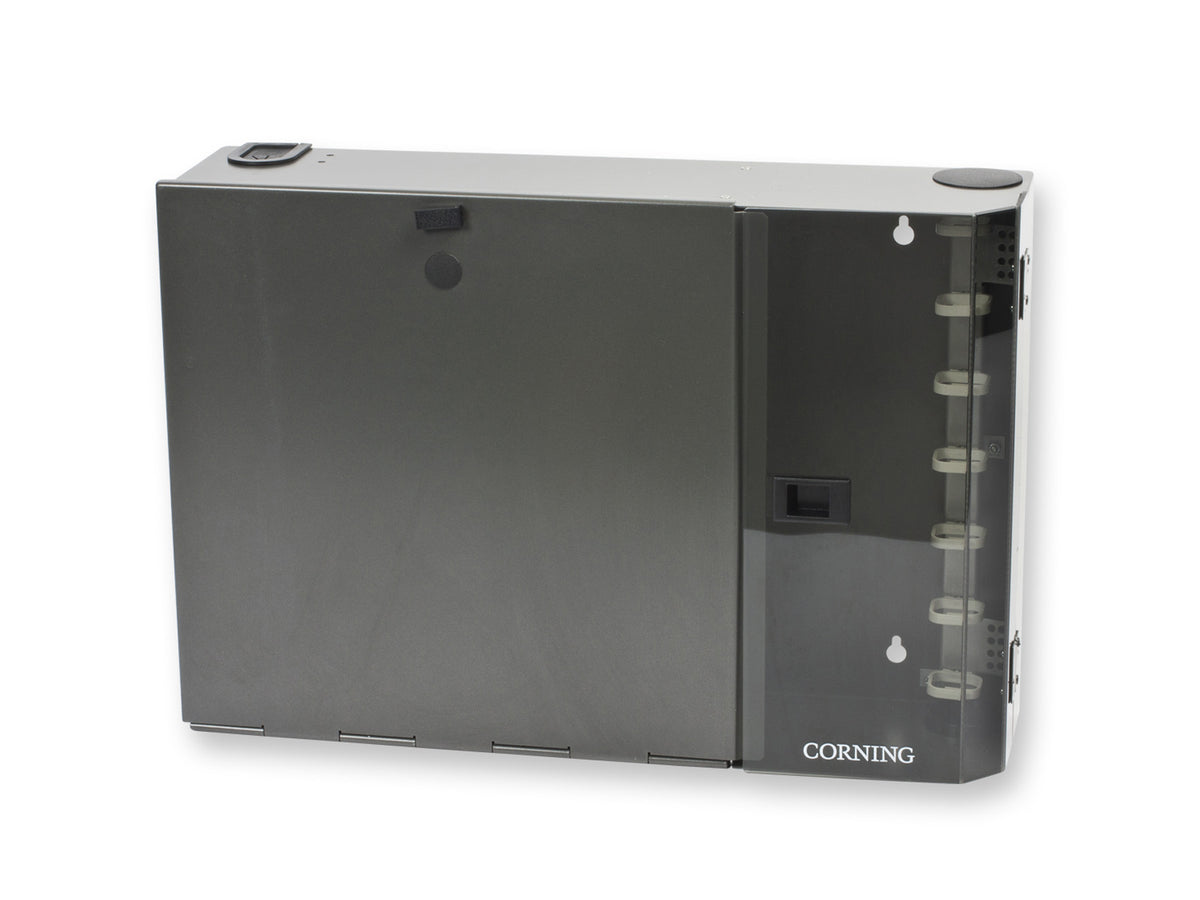

Corning PWH-04P | Pretium Wall-Mountable Housing (PWH)
Regular price
$470.69
Unit price
Brand: Corning
|
SKU:
342288
Regular price
$470.69
Unit price
Description
Description

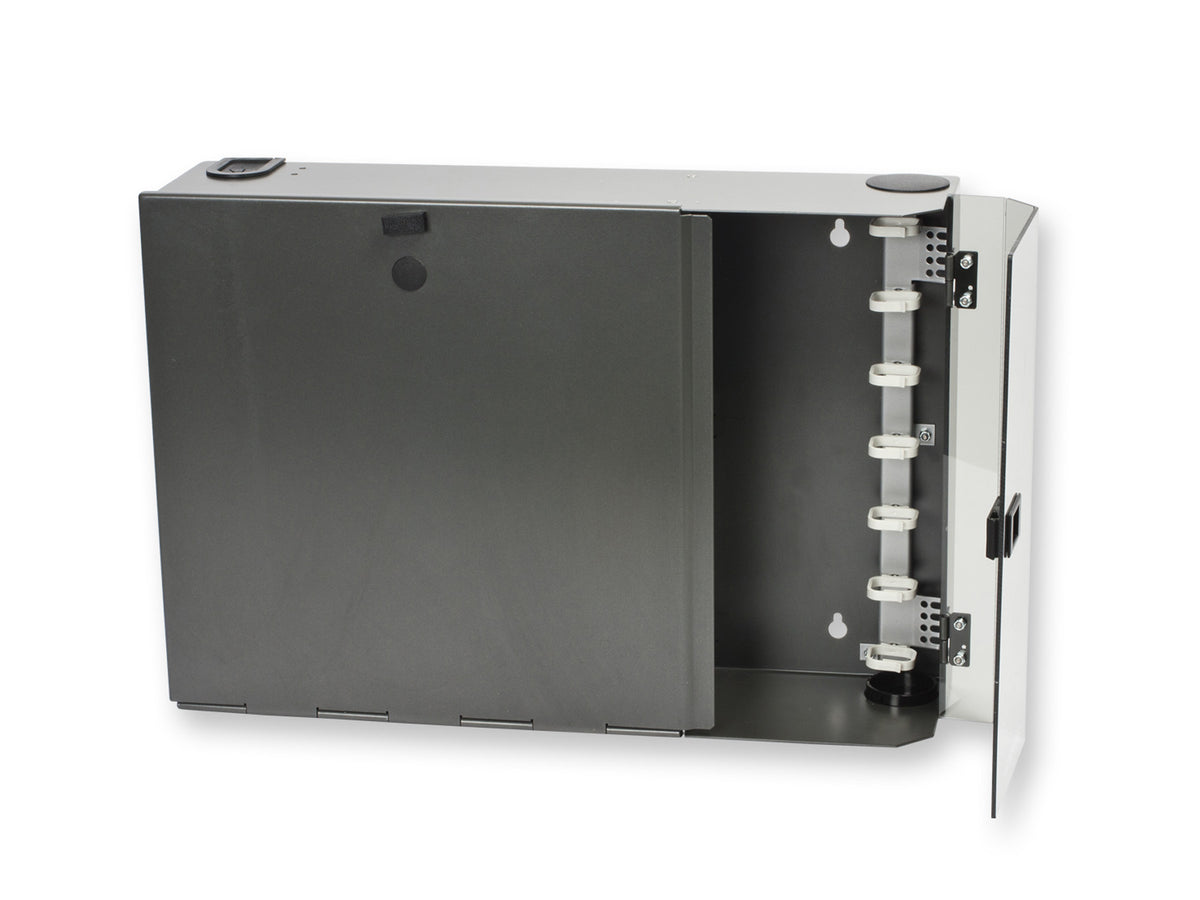

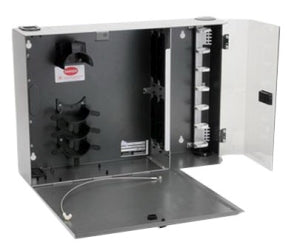

Corning PWH-04P | Pretium Wall-Mountable Housing (PWH) Holds 4 CCH connector panels
Corning - PWH-04P - Features
- Rugged metal construction
- Durability
- Drop-down front door
- Allows for temporary workshelf
- Jumper routing guides
- Easy fiber management
- Interconnect and cross-connect capabilities
- Variety of applications
- Field-installable lock kit (optional)
- Additional security
- Splice tray holder (optional)
- Easier field splicing
Specifications
Specifications
Corning - PWH-04P - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- Data Communications and Networking
- Patch Panels and Enclosures
- Fiber Optic Patch Panels - Unloaded
- Fiber Optic Hardware
- Housings
Corning - PWH-04P - Specifications
| General Specifications | - |
|---|---|
| Product Number | PWH-04P |
| EAN Code | 4056418188485 |
| Product Type | Wall-Mountable Hardware |
| Mounting Type | Wall-Mountable |
| Application | Enterprise Networks |
| Design | - |
| Number of Modules | 4 |
| Housing Type | PWH |
| Locking Availability | Provider door |
| Number of Panels per Housing | 4 |
| Panel or Module Type | CCH |
| Splice Tray Options | 1 category 4R |
| Fiber Capacity | 96 |
| Connector Specs | - |
| Housing Color | Grey |
| Dimensions | - |
| Height | 36576 mm (1440 in) |
| Width | 533.4 mm (21 in) |
| Depth | 13462 mm (530 in) |
| Shipping Dimensions | - |
| Height | 3429 mm (135 in) |
| Width | 685.8 mm (27 in) |
| Depth | 5969 mm (235 in) |
| Ordering Information | - |
| Package Contents | Housing; installation guide; 4 blank panels; unit ID label; self-adhesive edge grommet 15-in; central strength member strain-relief kit; 3 1/8 x 4-in tie wraps |
| Shipping Weight | 10.4 kg |
| Width | 533.4 mm (21 in) |
| Units per Delivery | 1/1" |
| Type | Fiber Enclosure |
| Mounting | Wall |
| Outlet Type | Cassettes |
| Capacity - Adapters | 4 |
| Dimensions | WxHxD: 21 x 14.4 x 5.3 in. (533.4 x 365.7 x 134.6mm) |
| Color | Gray |
