Panduit FRRF126SCOR | Reducer Cover | UPC - 07498383569

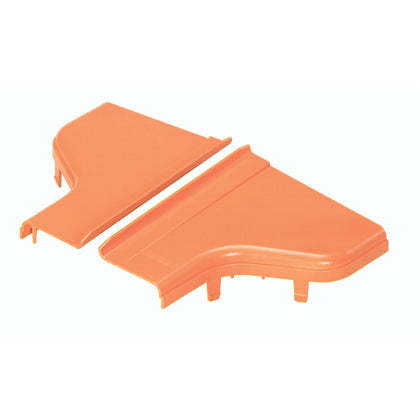

The optional split cover for the reducer fitting FRRF126OR is orange and made of ABS plastic. The snap-on feature allows the cover to be installed and removed with no tools required. It creates a radiused 3/4" (19mm) opening for easy access to add or remove cables.

---

Panduit FRRF126SCOR | Reducer Cover | UPC - 07498383569 Key Specs

Application	Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. Used in Telco Central Offices to Route Fiber Optic Jumper Cables between Fiber Distribution Frames and Equipment Bays
Product Type	Reducer Cover
Color	Orange
Connector 1 Type	12" Reducer Cover
Connector 2 Type	6" Reducer Cover
For Use With	Fiber Optic Jumper Cables
Includes	FiberRunner (1) 24X4,(1) 12x4, (1) 6x4, and (1) 2x2 Routing Systems, the Fiber-Duct (1) 4x4 and (1) 2x2 Routing Systems, Wyr-Grid Overhead Cable Tray System, Cable Management, and Racks
Material	ABS
Overall Length (In.)	7.81
Overall Length (mm)	198.4
Overall Depth (In.)	7.81
Overall Depth (mm)	198.4
Overall Height (In.)	2.74
Overall Height (mm)	69.6
Sub Brand	FiberRunner
Overall Width (In.)	13.63
Overall Width (mm)	346.2
Standards Met	UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3,RoHS Compliant
System Dimensions	12x4
