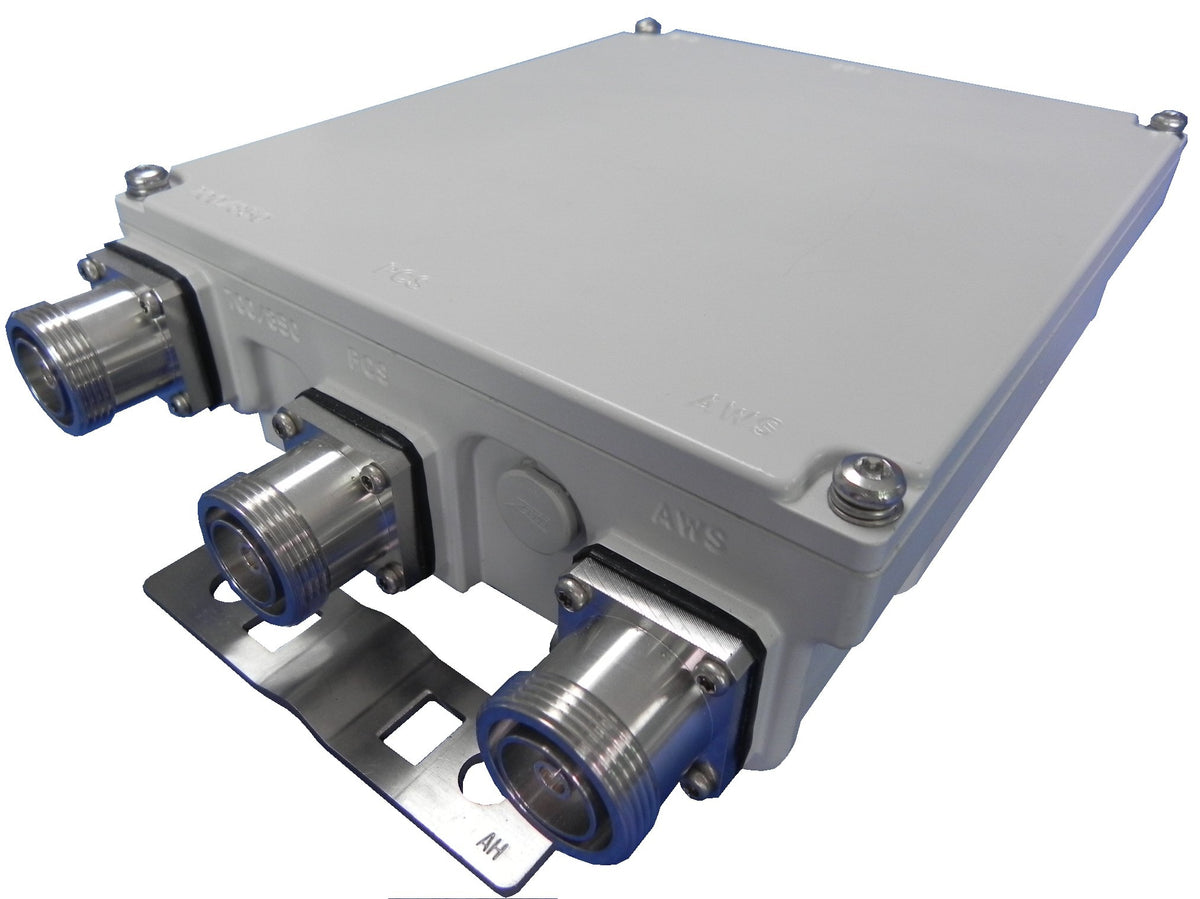

Commscope CBC71921-DF | Triplexer 700–750 and Cellular/PCS/AWS
Regular price
$833.16
Unit price
Brand: CommScope
|
SKU:
957103
Regular price
$833.16
Unit price
Description
Description
Commscope CBC71921-DF | Triplexer 700–750 and Cellular/PCS/AWS
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Triplexer |
|---|
General Specifications
| Product Family | CBC71921 |
|---|---|
| Color | Gray |
| Common Port Label | COM |
| Modularity | 1-Single |
| Mounting | Pole / Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 210 mm / 8.268 in |
|---|---|
| Width | 182 mm / 7.165 in |
| Depth | 62 mm / 2.441 in |
| Ground Screw Diameter | 6.35 mm / 0.25 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| License Band, Band Pass | APT 700 / AWS 1700 / CEL 850 / LMR 750 / LMR 800 / PCS 1900 / USA 700 / USA 750 |
| Composite Power, RMS | 500 W |
| dc/AISG Pass-through Method | Factory set |
| dc/AISG Pass-through Path | Branch 1 / Branch 2 / Branch 3 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
|---|---|
| Relative Humidity | 5%–100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
|---|---|
| Volume | 2.4 L |
| Weight, without mounting hardware | 3.5 kg / 7.716 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
