Brand: Fire-Lite Alarms Inc. | SKU: 785574

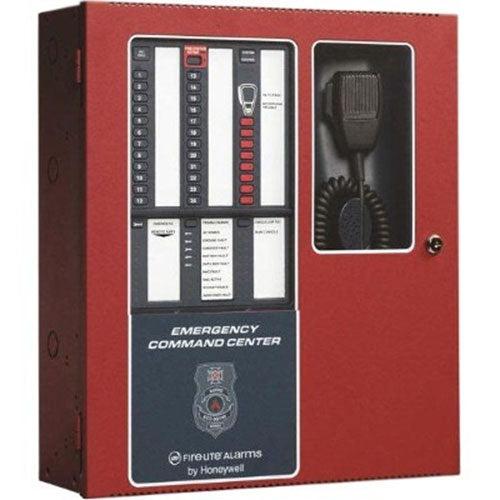

Fire-Lite Alarms, Inc. ECC-50/100 | Emergency Command Center, Honeywell International

$3,770.31

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The ECC-50/100 and ECC-50/100E are multipurpose emergency voice evacuation panels that may be used for fire applications, mass notification applications or both. These state-of the-art Primary Operator Console's (POC's) are capable of producing either 50 or 100 watts of audio power that can be distributed to up to eight speaker circuits (i.e., zones).

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	ECC-50/100
Product Name	Emergency Command Center
Product Type	Voice Evacuation System

General Information

Name	Fire-Lite Emergency Command Center, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Voice Evacuation, Education Solutions, Education Solutions
UPC Code	20103313029
Country of origin	United States. Country of origin is subject to change.

Physical Characteristics

Depth	5.2
Height	19
Width	16.7

Miscellaneous

Additional Information	UL Listed to UL2572 Communication (Control Units Mass Notification Systems). Modular design for maximum system flexibility and easy expansion. 50 watts of 25 V audio power (expandable to 100 watts) RMS. Optional amplifier can be configured as a backup in the event the primary amplifier fails. Amplifiers are independently powered to eliminate system interruption during a short circuit condition Eight Command Input Circuits to activate messages 1 to 8: Seamless integration and control when connected to select Fire-Lite panels through the ANNACS (EIA-485) communication bus. Speaker circuits are expandable by up to 8 outputs (With an optional circuit expander module). Removable terminal blocks for ease of servicing and module replacement. 2 amp Notification Appliance Circuit (NAC) output, sync generator, or follower for System Sensor, Wheelock or Gentex protocols: Integral supervised microphone. 520HZ square wave tones can be uploaded to ECC-50100 to meet NFPA Low Frequency requirements
Certifications & Standards	ULULC Listed S2424. Compliant with UFC 4-021-01. CSFM: 7300-0075:0226. NYC Fire Dept.Certificate of Approval: #6152. FM Approved
ApplicationUsage	Fire Alarm

Documents and Downloads
