Brand: Panduit
|
SKU:
699147
Panduit BS101245U | One Hole Non-Insulated | UPC - 07498311608
Regular price
$124.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BS101245U | One Hole Non-Insulated | UPC - 07498311608
Regular price
$124.08
Unit price
Description
Description

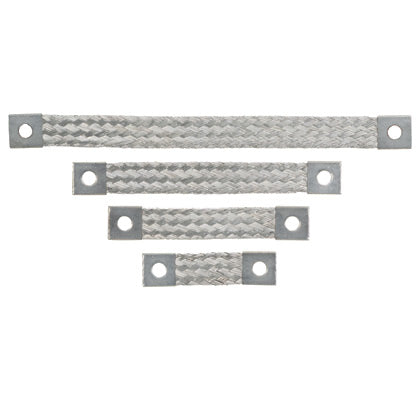

Panduit StructuredGround Flat Braid Bonding Strap, 1-Hole Non-Insulated, 4 AWG Cable, 12 in Length, 1.06 in Width, 0.13 in Thickness, 3/8 in Mounting Hole, Copper, Tin Plated
Features + Benefits
- Flat ferrule end design helps to reduce the effects of EMI
- Made of high conductivity copper and tin plated to inhibit corrosion
- Seamless ferrule ends provide mechanical strength for improved reliability
- Available with internationally recognized green and yellow insulation for grounding application
Panduit BS101245U Key Specs
| Sub Brand | StructuredGround |
| Product Type | One Hole Non-Insulated |
| Material | Tin-plated Copper |
| Color | Metallic |
| Overall Length (In.) | 12 |
| Overall Length (mm) | 304.8 |
| Overall Width (In.) | 1.06 |
| Overall Width (mm) | 27 |
| Ferrule Length (In.) | 1 |
| Ferrule Length (mm) | 25.4 |
| Stud Hole Size (In.) | 0.375 |
| Stud Hole Size (mm) | 10 |
| Application | Control Panel |
| Standards Met | cULus Listed - 467 for Bonding Applications Only |
| Part Features | Flat seamless ferrule end design helps to reduce the effects of EMI (Electromagnetic Interference) |
Panduit BS101245U Data Sheets
| Part Drawings | Part Drawing - PDF - GB0239MJ A RV 10B PUM-071-_30 | Download and View |
| Specification Sheets | Specification Sheet - WWWASP04 Push Mounts for web 101708 | Download and View |
