Panduit PV10-6FB-2K | Terminals on a Reel | UPC - 07498380448
Regular price
$1,084.14
Unit price
Brand: Panduit
|
SKU:
PAN-PV10-6FB-2K
Regular price
$1,084.14
Unit price
Shipping calculated at checkout.
Description
Description

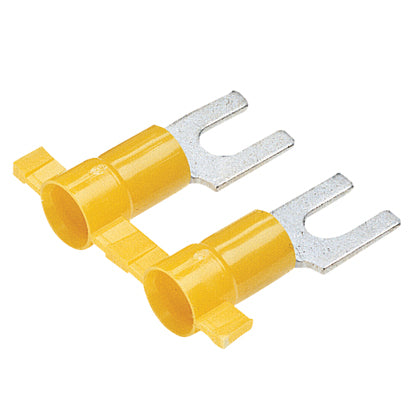

Panduit Pan-Term Reel Smart Fork Terminal, Reel Fed, Series: PV-FB, Stranded Copper Conductor, 12 to 10 AWG Conductor, #6 Stud, 0.99 in Length, Butted Seam/Funnel Entry/Insulation Support Barrel, Standard Fork Tongue, 0.31 in W Tongue, 600 VAC, 0.34 in L Wire Strip, 0.23 in Vinyl Insulation, 221 deg F, Copper, Tin Plated, Yellow
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit PV10-6FB-2K | Terminals on a Reel | UPC - 07498380448 Key Specs
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.7 |
| Standards Met | American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV10-6FB-2K | Terminals on a Reel | UPC - 07498380448 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PV18-6FB-3K Product Page | Download and View |
| Part Drawings | Fork Terminals-A41079 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV10-6FB-2K | Terminals on a Reel | UPC - 07498380448 Environmental Information
| Panduit's RoHS Statement | Download and View |
