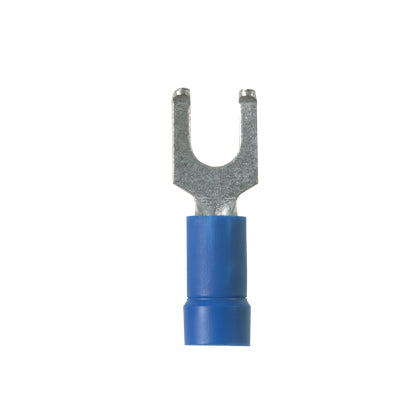

Panduit PV14-8FF-M | Fork Terminal | UPC - 07498346506
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
PAN-PV14-8FFM
Regular price
$1.46
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Series: PV-FF, Stranded Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.94 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Fork Tongue, 0.31 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.165 in Dia Vinyl Insulation, 0.23 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit PV14-8FF-M | Fork Terminal | UPC - 07498346506 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | CSA certified C22.2 No.65,UL Listed UL486A-486B |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
Panduit PV14-8FF-M | Fork Terminal | UPC - 07498346506 Data Sheets
| Part Drawings | Part Drawing - PDF - A41573 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit PV14-8FF-M | Fork Terminal | UPC - 07498346506 Environmental Information
| Panduit's RoHS Statement | Download and View |
