Brand: CommScope
|
SKU:
372128

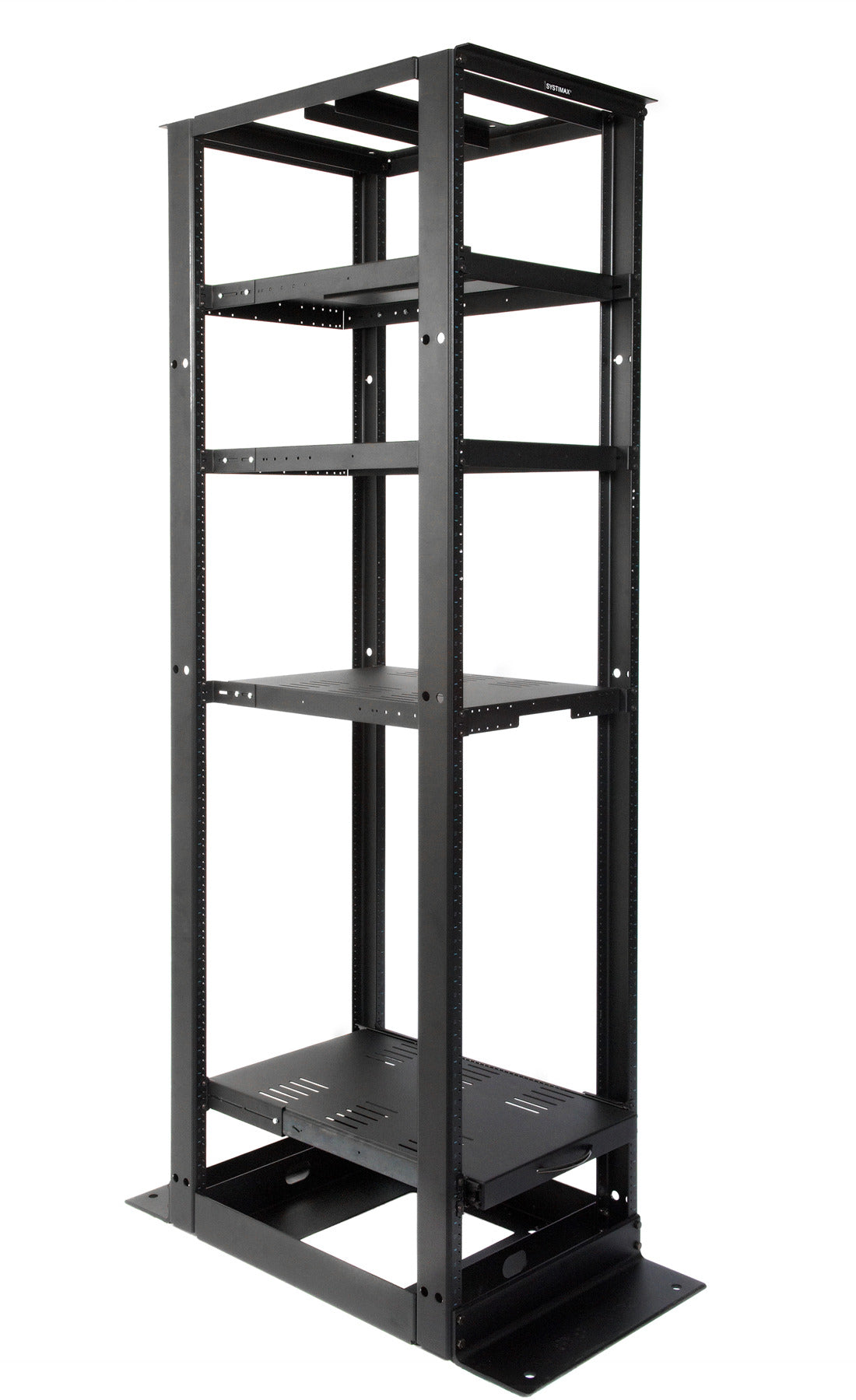

Commscope RK4P45-36A | Equipment Rack, 4-Post, 36 in (914 mm) D x 7 ft (2134 mm) H - 19 in (482.6 mm) Alu (45U) 12-24 Tapped Rails, Black
Regular price
$1,522.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope RK4P45-36A | Equipment Rack, 4-Post, 36 in (914 mm) D x 7...
Regular price
$1,522.61
Unit price
Description
Description
Commscope RK4P45-36A | Equipment Rack, 4-Post, 36 in (914 mm) D x 7 ft (2134 mm) H - 19 in (482.6 mm) Alu (45U) 12-24 Tapped Rails, Black
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | 4 post rack |
General Specifications
| Color | Black |
|---|---|
| Rack Type | EIA 19 in |
| Rack Units | 45 |
| Rail Mounting Hole | #12-24 |
Dimensions
| Height | 2133.6 mm / 84 in |
|---|---|
| Channel Width | 76.2 mm / 3 in |
| Width | 518.16 mm / 20.4 in |
| Depth | 1219.2 mm / 48 in |
| Dimensional Standards | EIA-310-E |
Material Specifications
| Finish | Powder-coated, textured |
|---|---|
| Material Type | Aluminum |
Mechanical Specifications
| Static Load Rating | 907.2 kg / 2000.031 lb |
|---|
Environmental Specifications
| Safety Standard | UL / cUL |
|---|
Packaging and Weights
| Included | Base pan / Forty #12-24 x 1/2 in mounting screws / Four vertical rack rails / Instruction sheet / Twenty four 3/8 in split lock washers / Twenty four 3/8-16 UNC x 1 in hex head bolts / Twenty four 3/8-16 hex nuts / Two extruded base angles / Two extruded top angles / Upper plate support |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Flat packed |
| Weight, net | 44 kg / 97.003 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
