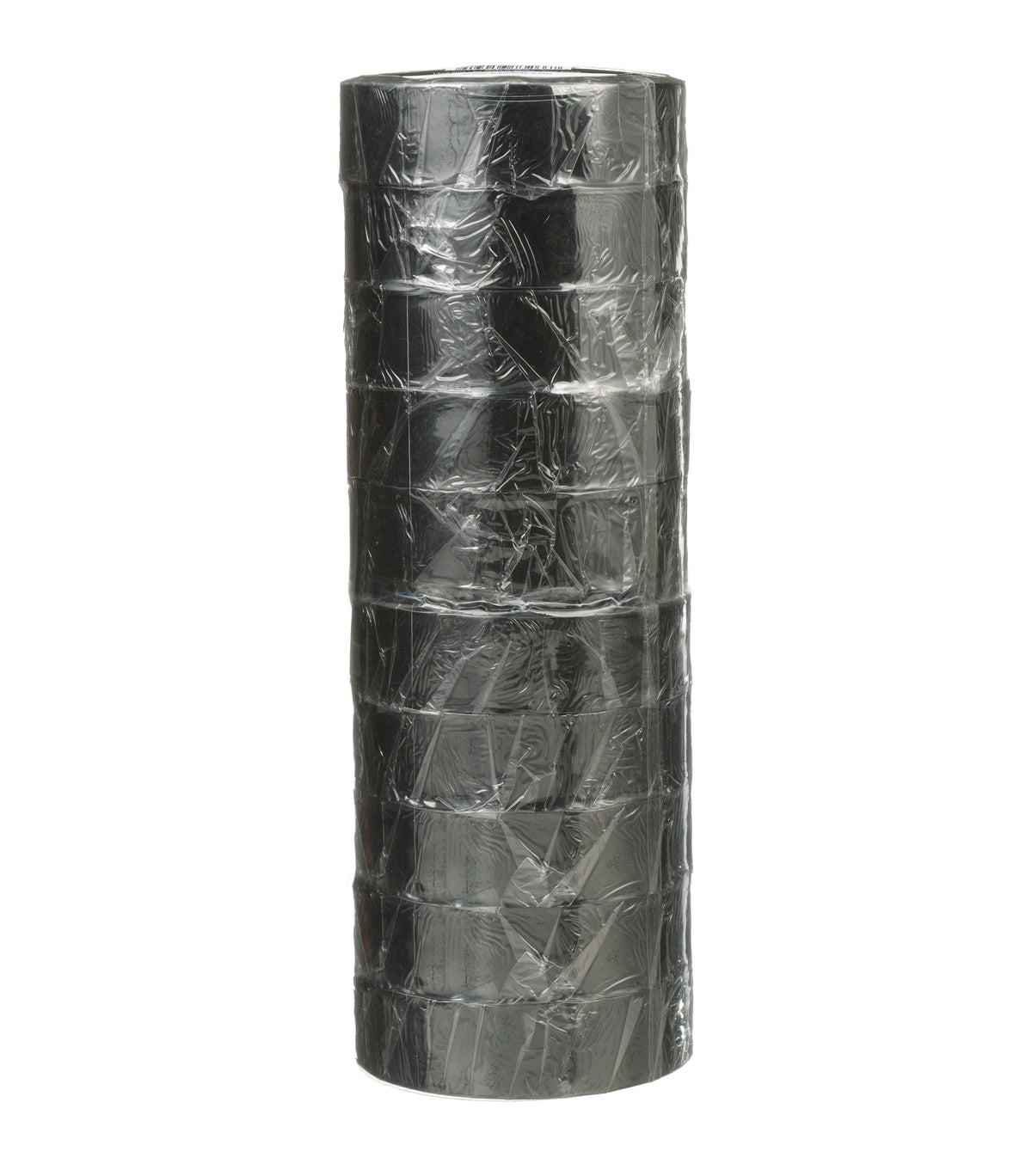

Panduit ST14-075-60BKX | PVC Electrical Tape | UPC - 61305673266

Panduit ST14 General Purpose PVC Electrical Tape is a 0.18 mm (7 mil), one sided rubber based, pressure sensitive adhesive glossy finish vinyl electrical tape. The ST14 series product is non-corrosive and has pressure-sensitive adhesive which eliminates the need for heat, moisture and or other catalysts to affect the application. The high elongation makes it easy to tear while having excellent conformability properties. The product is UL and CSA Listed, Flame Retardant, as well as cold resistant. ST14 is suitable as an electrical insulation when insulation when used for splicing up 600 Volts or 80?C (176?F). ST14 tape dimensions are as follows: .75" x 60' x .007”.

---

Panduit Panduit ST14-075-60BKX | PVC Electrical Tape | UPC - 61305673266 Key Specs

Sub Brand	StrongHold
Product Type	PVC Electrical Tape
Color	Black
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.007
Overall Thickness (mm)	0.18
Overall Width (In.)	0.75
Overall Width (mm)	19.05
Overall Length (ft.)	60
Overall Length (m)	18.29
Tensile Strength (N/cm)	23.54
Tensile Strength (kg/mm)	0.24
Elongation at Break (%)	200
Adhesion to Steel (N/cm)	1.75
Adhesion to Steel (oz/in)	16
Adhesion to Backing (N/cm)	1.75
Adhesion to Backing (oz/in)	16
Flammability Rating	UL 510 Flame Retardant
Flagging (mm)	0
Maximum Operating Temperature (°C)	80
