Atlas Sound IED1522LR | IED1522LR 2 Logic Input x 2 Relay Output IO...
Description
Description

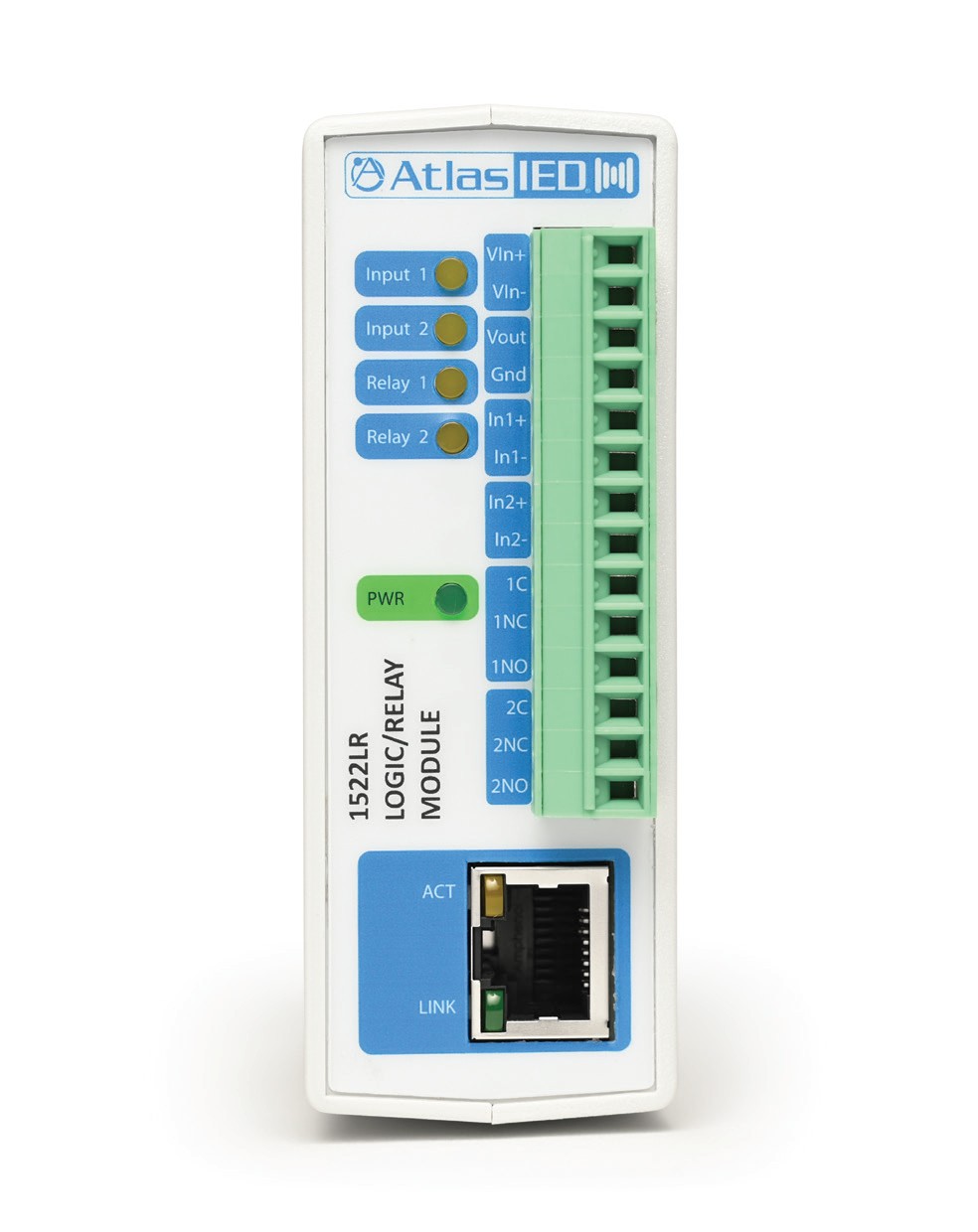

The IED1522LR Logic / Relay Module is a cost effective interface module that operates as an integral part of an AtlasIED GLOBALCOM® system. It is a web-enabled, programmable relay device for a wide variety of remote control and automation applications. It has two electro-mechanical relays and two optically-isolated inputs.
The relays can be controlled remotely using actions configured in the GLOBALCOM® GCK Application and 5400 Designer control software. The optically-isolated inputs can be used to trigger actions or as logic monitor points that will register faults in the system. The module receives its power over IEEE 802.3af PoE and communicates with other system devices over the Ethernet network.
If you have the prior version of the IED1522LR with the "IED" logo (instead of the newer "AtlasIED" logo), please click here for the relevant documentation.
Atlas Sound - IED1522LR - Features
- Two electro-mechanical relays
- Two optically-isolated inputs
- Utilizes IEEE 802.af Power over Ethernet (PoE)
- Control and configure using a web browser, GLOBALCOM® 5400Designer Software, and GCK
- Settings stored in non-volatile memory
- Fully supervised system voltage and internal temperature monitoring
- Rugged Din-rail mount enclosure
Specifications
Specifications
Atlas Sound - IED1522LR - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Mass Communications Systems
- GLOBALCOM® Enterprise Communication Ecosystem
- I/O & Logic Devices
Atlas Sound - IED1522LR - Specifications
| Voltage | 48 VDC (PoE) |
|---|---|
| Operating Temperature Range | –22?F – +149?F (–30?C – +65?C) |
| PoE Power Consumption | < 3.84 W |
| Inputs | 14 Position Removable |
| Rack Units | RJ45 |
| Height | 3.88" (9.85 cm) |
| Width | 1.41" (3.57 cm) |
| Depth | 3.10" (7.80 cm) |
| Weight | 5.5 oz (156 g) |
| UNSPSC Code | 52161600 |
Atlas Sound - IED1522LR - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
