Brand: HellermannTyton | SKU: 987255

HellermannTyton 151-02094 | High Torque Mount, Mounting Hole Dia. 0.327", Max Torque 114.0 lb - ft, PA66HIRHSUV, Black, 500/pkg

Regular price $1,401.39
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

HellermannTyton 151-02094 | High Torque Mount, 0.327" Mounting Hole Dia, 114.0 Lb/Ft Max Torque , Pa66Hirhsuv, Black, 500/Pkg

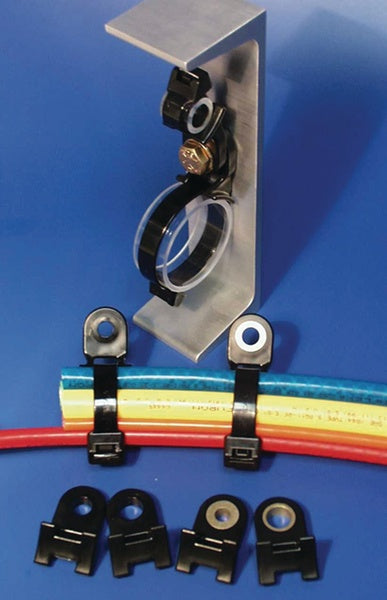

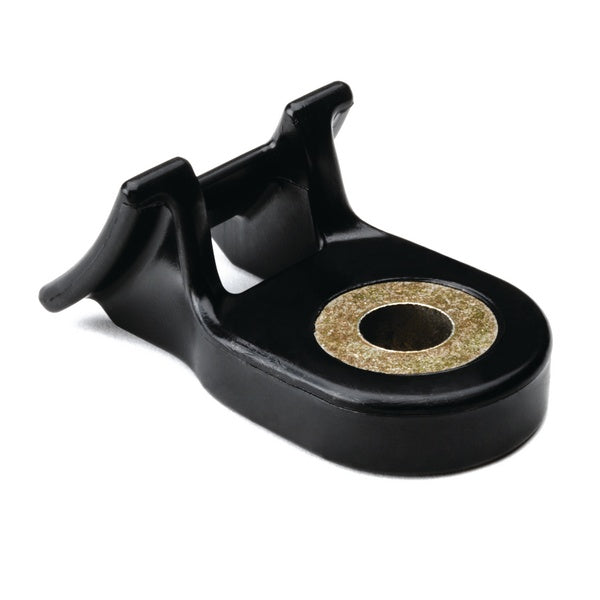

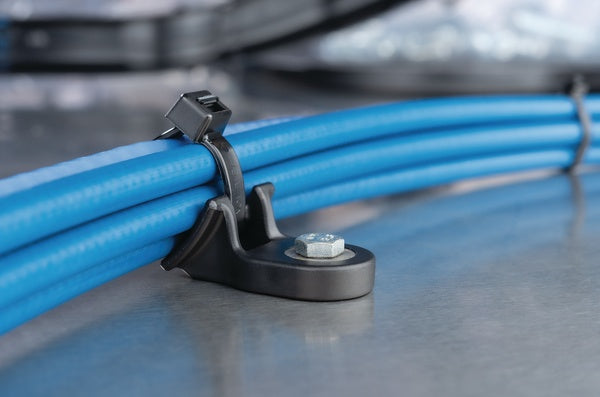

The high-torque mount is designed for use with power-assisted impact wrenches and is molded with a heavy bushing to withstand the forces required to tighten grade 8 bolts. The arched H-profile of the saddle surface allows for a broad surface contact wi th the bundle, minimizing pinching and crushing of the bundles, and adjusts to a wide variety of bundle diameters when used with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties.

The high-torque mount is designed for use with power-assisted impact wrenches and is molded with a heavy bushing to withstand the forces required to tighten grade 8 bolts. The arched H-profile of the saddle surface allows for a broad surface contact with the bundle, minimizing pinching and crushing of the bundles, and adjusts to a wide variety of bundle diameters when used with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - 151-02094 - Features

  • Mount and tie combination makes it easy to service bundles in the field.
  • Made from impact modified, heat stabilized, UV resistant material, ideal for heavy duty environments.
  • Eliminates the needs for multiple sized fix diameter clamps.
  • Tamper resistant covers with hidden latch provide security while allowing quick entry for cable maintenance.
  • PVC construction is lightweight, durable and more affordable than metallic raceway systems.
  • Flexible hinge is designed to reduce stress cracking and discoloration from repeated opening and closing.
  • Systems and fittings are available in white, office white and ivory to coordinate with a variety of décor.
  • Fittings incorporate a minimum 1" bend radius to meet TIA/EIA 568-B and 569-A standards.

Specifications

HellermannTyton - 151-02094 - Product Categories

  • Hardware
  • Cable Management
  • Tubing
  • Bundling & Securing
  • Heavy Duty Cable Tie Mounts
  • Mounts Secured with Mechanical Fasteners - Single Bundle

HellermannTyton - 151-02094 - Specifications

Brand NameHellermannTyton
DualNo
Heat ShrinkNo Is Not Shrink Tubing
UNSPSC Code39130000

HellermannTyton - 151-02094 - Base Data

Article Number151-02094
TypeHDM320
ColorBlack (BK)
Quantity Percarton
Short DescriptionHigh Torque Mount, 0.327" Mounting Hole Dia, 114.0 lb/ft Max Torque , PA66HIRHSUV, Black, 500/pkg
Global Part NameHDM320-PA66HIRHSUV-BK

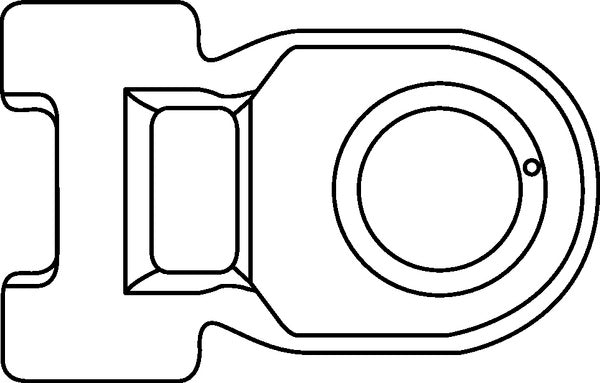

HellermannTyton - 151-02094 - Product Dimensions

Minimum Tensile Strength (Imperial)120
Minimum Tensile Strength (Metric)533
Length L (Imperial)1.85
Length L (Metric)47
Fixation MethodScrew Mounting and Rivet
Width W (Imperial)0.98
Width W (Metric)25
Height H (Imperial)0.81
Height H (Metric)20.7
Cable Tie Width Max (Imperial)0.5
Cable Tie Width Max (Metric)12.7
Mounting Hole Diameter D (Imperial)0.327
Mounting Hole Diameter D (Metric)8.31 mm
Mounting Hole Diameter D Min (Imperial)0.327
Mounting Hole Diameter D Max (Imperial)0.327
Mounting Hole Diameter D Max (Metric)8.31
Stud Diameter (Metric)8.0 mm
Stud Diamater (Imperial)0.31

HellermannTyton - 151-02094 - Logistic & Packaging

Package Quantity (Imperial)500
Package Quantity (Metric)500
Customs Number3.93E+09

HellermannTyton - 151-02094 - Materials & Specifications

MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material ShortcutPA66HIRHSUV
FlammabilityUL 94 HB
UV Resistant (Yes/No)Yes
Operating Temperature-40°F to +221°F (-40°C to +105°C)
Maximum Torque (kgf-cm)1576
Maximum Torque (lbf-ft)114
Reach Compliant (Article 33)Yes
ROHS CompliantYes
