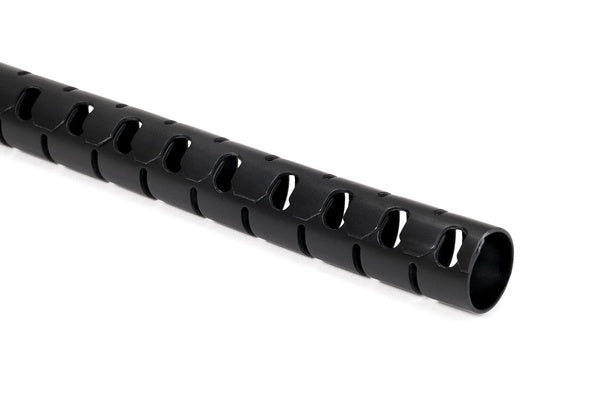

HellermannTyton 161-63103 | Helawrap, Hwpav08, 5/16" (8Mm) Dia...
Description
Description

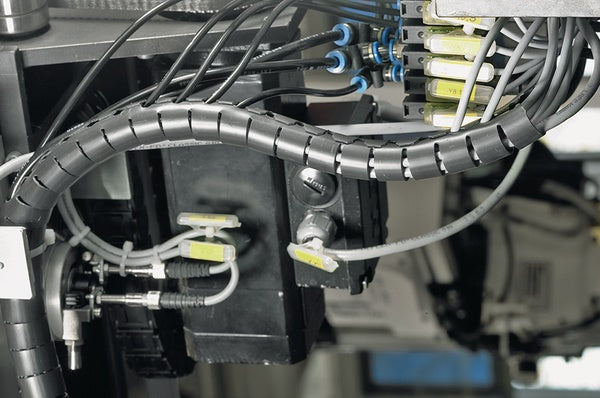

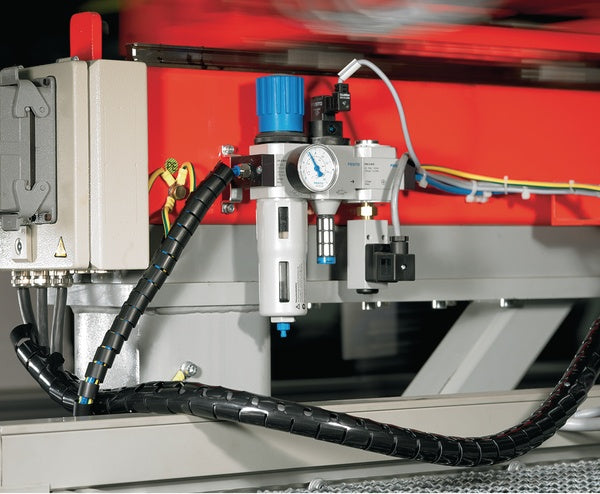

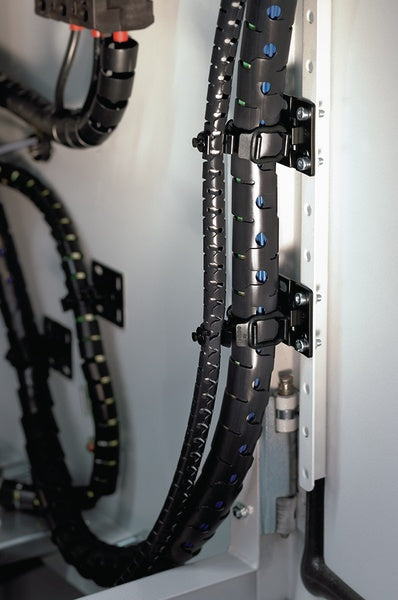

The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Helawrap easily wraps around cables with a "zipper-like" motion to protect against abrasion and mechanical stress caused by movement and bending. A handy application tool is included in every package for faster installations.
The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Helawrap easily wraps around cables with a "zipper-like" motion to protect against abrasion and mechanical stress caused by movement and bending. A handy application tool is included in every package for faster installations.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 161-63103 - Features
- Designed for applications that demand high flame retardant materials
- Unique open design allows for easy branch-offs at any point along the harness
- Overwrap formation provides abrasion protection and accommodates multiple bundle configurations
- Flexibl construction and design is well suited for applications that involve movement and vibration
- Easy-to-use installation tool makes assembly fast and easy
- An innovative coupling system allows for an unlimited number of bundling combinations.
- Clips can be easily released and reused.
- Clips swivel freely which reduces mechanical stress and eliminates pinch points.
- High Impact Polyamide 6.6 material provides firm fit even in rugged conditions.
- Consists of acrylate adhesive with base of polyurethane foam allowing it to adhere firmly and easily to nearly any surface.
Specifications
Specifications
HellermannTyton - 161-63103 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Helawrap Protective Tubing
- Helawrap - Flame Retardant
HellermannTyton - 161-63103 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .360 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Size By Inch Fractions | 5/16 Inch |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 161-63103 - Base Data
| Article Number | 161-63103 |
|---|---|
| Type | HWPAV08 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Helawrap, HWPAV08, 5/16" (8mm) Dia, PA6V0, Black, 100 ft/reel |
| Global Part Name | HWPAV08-PA6V0-BK |
HellermannTyton - 161-63103 - Product Dimensions
| Length L (Imperial) | 100 |
|---|---|
| Length L (Metric) | 30.48 |
| Variant | Spiral Binding |
| Bundle Diameter Min (Imperial) | 0.28 |
| Bundle Diameter Min (Metric) | 7 |
| Bundle Diameter Max (Imperial) | 0.36 |
| Bundle Diameter Max (Metric) | 9 |
| Diameter D (Imperial) | 0.25 |
| Diameter D (Metric) | 8 |
| Nominal Diameter (Imperial) | 0.31 |
| Nominal Diameter (Metric) | 8 |
| Wall Thickness WT (Imperial) | 0.0295 |
| Wall Thickness WT (Metric) | 0.75 |
HellermannTyton - 161-63103 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 30.48 |
| Customs Number | 3.93E+09 |
HellermannTyton - 161-63103 - Materials & Specifications
| Material | Polyamide 6 V0 (PA6V0) |
|---|---|
| Material Shortcut | PA6V0 |
| Flammability | UL 94 V-0 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +194°F (-40°C to +90°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | EN [45545-2]UL | UL 1441 |
| UL Recognized (US) | Yes |
