HellermannTyton PR1M4 | Panel Rivet, Pa66, Natural, 1000/Bg
Description
Description
HellermannTyton panel rivets are one piece drive rivets that provide a fast, economic means of affixing wiring duct. The rivet is inserted into a 3/16" pre-punched hole and the pin is driven into the base, thereby expanding the rivet legs and locking t he duct and sub-panel in place. The panel thickness (including the duct thickness) should be a maximum of 3/16".
HellermannTyton panel rivets are one piece drive rivets that provide a fast, economic means of affixing wiring duct. The rivet is inserted into a 3/16” pre-punched hole and the pin is driven into the base, thereby expanding the rivet legs and locking the duct and sub-panel in place. The panel thickness (including the duct thickness) should be a maximum of 3/16”.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - PR1M4 - Features
- Panel rivets are made with nylon material to hold duct securely to the panel without corroding, ensuring longvity.

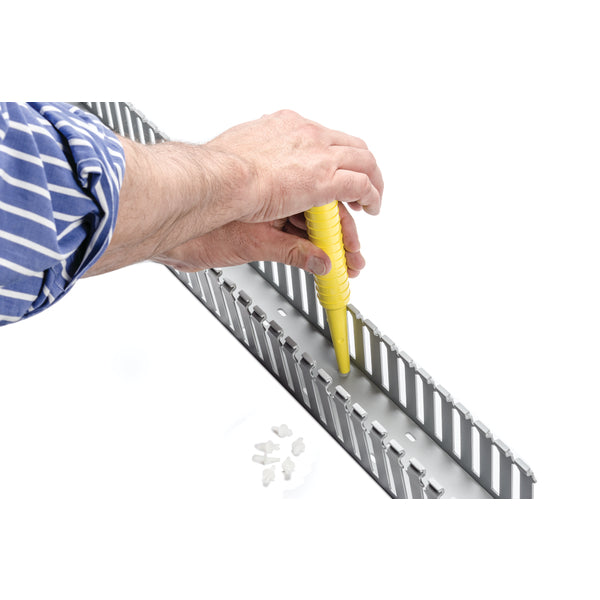

- Panel rivets can be easily inserted with use of a specially designed, long shafted panel rivet tool.
- Ergonomic design of the tool ensures effortless use when inserting rivets into deep channels or locations difficult to access.
Specifications
Specifications
HellermannTyton - PR1M4 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Wiring Duct
- Duct Tools and Accessories
HellermannTyton - PR1M4 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Accessories |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131713 |
HellermannTyton - PR1M4 - Base Data
| Article Number | 181-00139 |
|---|---|
| Type | PR1 |
| Color | Natural (NA) |
| Quantity Per | EA |
| Short Description | Panel Rivet, PA66, Natural, 1000/bg |
| Global Part Name | PR1-PA66-NA |
HellermannTyton - PR1M4 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 107 |
|---|---|
| Minimum Tensile Strength (Metric) | 478 |
| Panel Thickness Min (Imperial) | 0.15 |
| Panel Thickness Max (Imperial) | 0.28 |
| Panel Thickness Min (Metric) | 3.9 |
| Panel Thickness Max (Metric) | 7 |
| Mounting Hole Diameter D (Imperial) | 0.2 |
| Mounting Hole Diameter D (Metric) | 5.0 mm |
| Mounting Hole Diameter D Max (Metric) | 5 |
HellermannTyton - PR1M4 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - PR1M4 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
