Brand: Hes
|
SKU:
CS132864

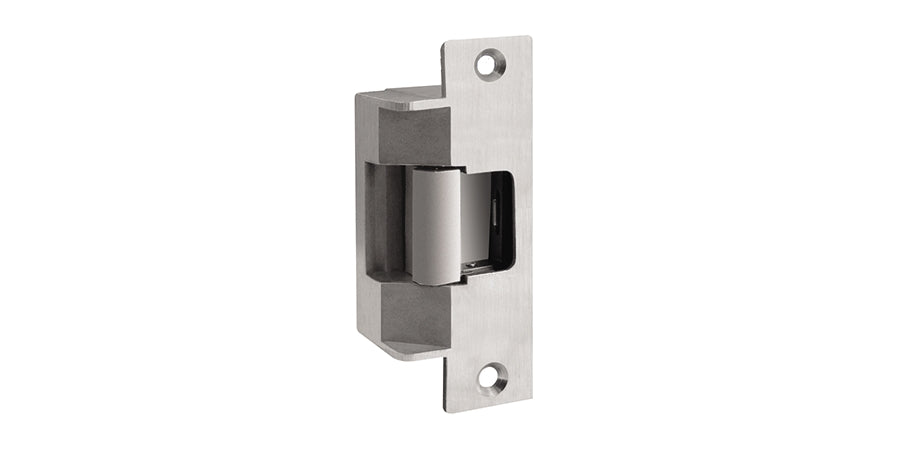

Hes 7501-12/24-630 | Electric Strike, Voltage and Duty Continuous: 12/24 VDC, Locking State: Selectable, Surface-Mount
Regular price
$609.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hes 7501-12/24-630 | Electric Strike, Voltage and Duty Continuous: ...
Regular price
$609.11
Unit price
Description
Description
Hes 7501-12/24-630 | Electric Strike, Voltage and Duty Continuous: 12/24 VDC, Locking State: Selectable, Surface-Mount
The 7501 Series electric strike is ideal for fire-rated applications with preload conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy-duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4 in. throw.
Hes - 7501-12/24-630 - Features
- Stainless Steel Construction
- Tamper-Resistant
- Dynamic Strength 70 Feet-Pound
- Endurance 500000 Cycles
- Field Selectable Fail Secure/Fail Safe
- Non-Handed
- Internally Mounted Solenoid
- Strike Body Depth 1-11/16"
- Plug-In Connector Trim Enhancer
Specifications
Specifications
Hes - 7501-12/24-630 - Specifications
| ANSI Grade | Grade 1 |
|---|---|
| Finish | US32D Satin Stainless Steel |
| Frame Material | Hollow Metal/Wood |
| Locking State | Selectable |
| Max Latch Length | 3/4 in. |
| Mounting | Surface-Mount |
| Product Type | Electric Strike |
| Pull Strength | 1500 lb. |
| UL | UL 3-Hour Fire and Burglary-Resistance |
| Voltage and Duty Continuous | 12/24 VDC |
| Voltage and Duty Intermittent | 12 VDC Intermittent Duty |
| Warranty | 5 Year |
