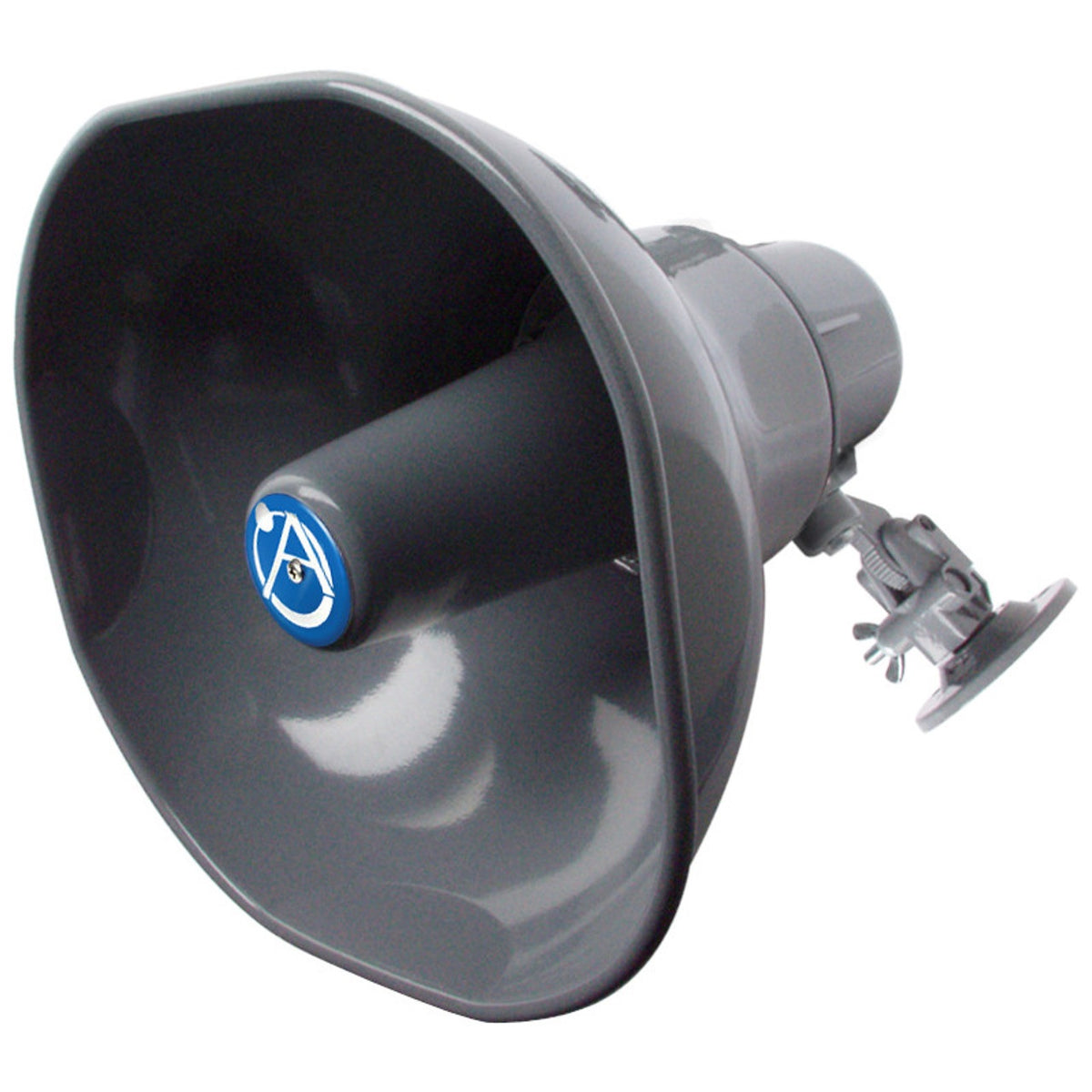

Atlas Sound AP-30T | Horn Speaker with 30-Watt 25V/70V/100V Transformer
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound AP-30T | Horn Speaker with 30-Watt 25V/70V/100V Transfo...
Description
Description
The Model AP-30T is a double re-entrant speakers which deliver 30-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-30T operates within a nominal frequency response range of 300Hz - 12kHz and offers a sensitivity of 121dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars.
AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in gray epoxy.
Atlas Sound - AP-30T - Features
- Environment Resistant for Outdoor & Indoor Use
- Grey Finish
- High-Efficiency Driver with Proven Performance Reliability
- Omni-Purpose™ Bracket for Precise Positioning
- Superior Intelligibility for Voice and Tone Signaling
- World Recognized for Quality and Dependability
- Superior intelligibility for voice and tone signaling
- High-efficiency driver with proven performance reliabilit
- Transformer (T) equipped version for versatile 25, 70.7, or 100 V line applications
- Omni-purpose bracket for precise positioning
- Environment r
Specifications
Specifications
Atlas Sound - AP-30T - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Horns
Atlas Sound - AP-30T - Related Products
- BX-1A - Conduit/Cable Adapter — AP-30 Series
Atlas Sound - AP-30T - Specifications
| Frequency Response | 300Hz -12kHz |
|---|---|
| Sensitivity | 108dB |
| Power Taps | 2, 3.8, 7.5, 15, 30 @ 70.7V |
| Dispersion | 60° |
| Operating Temperature Range | -40 to 70C |
| Height | 11" (27.94 cm) |
| Width | 10" (25.4 cm) |
| Depth | 10 1/2" (26.67 cm) |
| Shipping Weight | 6.30 lbs (2.86 kgs) |
| Operating Temperature Range | -40C to 70C |
| UNSPSC Code | 52161600 |
